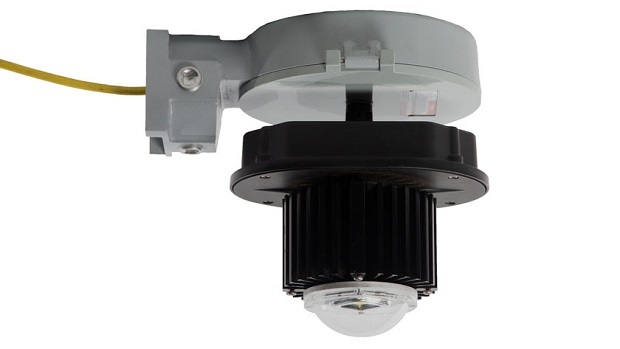

UAP Adaptor

The UAP is a bracket adaptor plate to retrofit the BL420 and the BL520 to fit your mounting requirements. It converts the male thread hook to be a side wall mount. Suitable for both wet and dry locations, the UAP adaptor plate allows you to shine in any situation.



MULTI Voltage 120-277V

Series Compatibility BL420/BL520

Supplied Hardware 1/2" Stainless Nipple, Gaskets, Cover Screw, Marrets

Work Temperature -40°C to + 40°C

Work Humidity 10% to 95% RH

Fixture Grey Aluminum Alloy Housing

Weight 4.5kg

Protection Wet Location, IP65

Approved Class 1 Div II, Class 2 Div II, RoHS, CE, cETLus

Tested to CSA and UL Standards

Part Number LS-UAP



Key Features



The high-powered LED chip in our Bay Lighting Series offers superior brightness, proven to eliminate safety concerns while providing exceptional light quality for highly productive environments. It reduces energy consumption by up to 70% and delivers more light, more efficiently. The UAP Adaptor enables the use of any of our BL series bay lights to be sidewall mounted.



Why It's Great



Production & quality control completed at Lumisave’s local manufacturing facilities.

Every chip tested on site.

Multi Chip has 80,000 Hours+ lifespan and produces 100 lumens per watt

Hazardous Location Certified

Rugged, weather-proof design

5 Year replacement warranty

Up to 70% energy savings
