Pleated Elements
|
Pleated elements significantly increase the filtration area in a given construction space.
Pleated elements are ribbons which have been pleated together, and then cut to a defined number of pleats. Endless pleated elements are possible with a suitable connection.
Pleated elements significantly increase the filtration area in a given construction space.
Pleated elements are ribbons which have been pleated together, and then cut to a defined number of pleats. Endless pleated elements are possible with a suitable connection.
The individual fabric layers are simultaneously cut and welded together on their longitudinal side during the ultrasonic slitting.
The cutting to a defined number of pleats is done ultrasonically or by other suitable cutting technologies.
Product forms
Up to 5 layers (non-woven depth filter, woven surface filter) are possible
Various filter media and filter materials can be combined (synthetics, steel, glass)
Pleat width ranges from 25 to 1200 mm; 25 – 590 mm for endless pleating elements
Pleat height ranges from 6 mm (one layer) or 8 mm (multi-layer) to 50 mm
Pleat counts are unlimited
The position of the individual fabric layers, the specification of the filter side and also the number of pleats are all very important and therefore have to be defined precisely.
Packaging and labeling
Pleated elements can be packed into PE bags that are welded shut

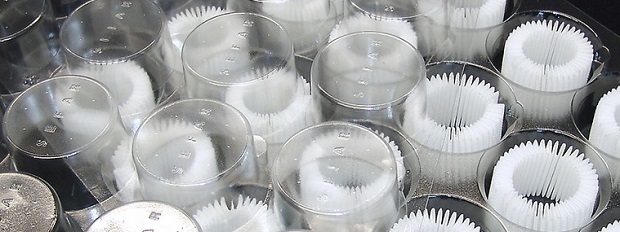

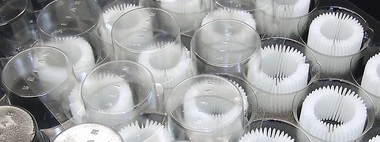

Endless pleated elements up to a maximal diameter of 50 mm and a maximal height of 60 mm can be packed in blisters (bigger products in PE bags)
Pleated elements made of SEFAR MEDIFAB fabrics are double bagged
The label contains the following information:
–Manufacturer
–Material
–Dimensions (diameter in mm, length in meter)
–Manufacturing date
–Order number
–Roll number
–Number of pieces per bag (except endless pleated elements)
Your Benefits
Can be used for medical applications (SEFAR MEDIFAB)
Wide scope of dimensions
The customer can send his free choice of filter materials
Optimal utilization of construction space
Traceability (label)
Easy handling (blister package)
Easy disposal (combustible materials)
