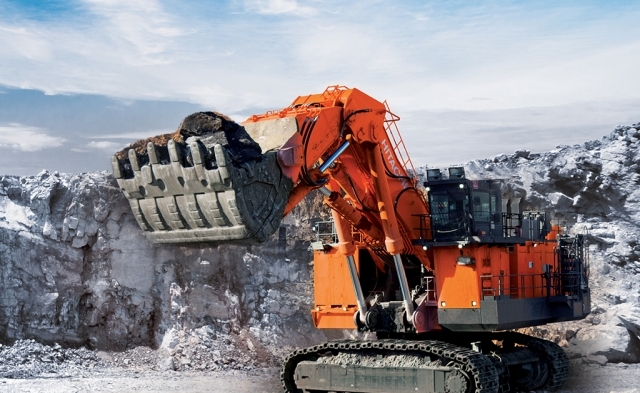

EX5600-6
|
Operating Weight, BE Backhoe 1,184,000 lb. (537 000 kg)
Operating Weight, Loading Shovel 1,175,000 lb. (533 000 kg)
Rated Power 3,000 hp (2238 kW)
Engine 2x Cummins QSK50C, Tier 2
Swing Speed 3.3 rpm
Bucket Capacity, Backhoe 44.5 cu. yd. (34 cu. m)
Bucket Capacity, Loading Shovel 38.0-40.0 cu. yd. (29.0-30.6 cu. m)
Smooth Efficiency on the Roughest Jobs
When you want to get more work done day-after-day, the EX5600-6 is an excellent choice. It combines proven designs with the newest technological advances to provide you with high uptime and maximum productivity.
Product Highlights
• Pairs with Hitachi EH3500ACII, EH4000ACII and EH5000AC-3 trucks.
• Lets you get more done with greater horsepower and larger BH bucket capacity.
• Provides smooth and accurate swinging with an advanced, triple-roller swing bearing.
• Increased engine and hydraulic cooling capacity.
• 10% increase in the hydraulic system, which ensures smooth simultaneous operations.
• Great environmental performance - two Cummins QSKTA50C engines generate a total of 2238 kW (3,000 gross horsepower) at 1800 rpm (an increase of 7%) while meeting EPA Tier 2 emission regulations.
• New short reach backhoe front feature.
• Available in both backhoe and front-shovel configurations.
