JDLink™ Machine Monitoring

Oct 28, 2013

JDLink gives you remote access to fleet location, fleet utilization and unparalleled diagnostic data. Now you can easily see what equipment is earning and which machines are idling — all while keeping preventative-maintenance tabs on each machine in your fleet.

Key features include:

• Monitoring machine health

• Extending life through preventative maintenance

• Simplifying maintenance scheduling and documentation

• Increasing uptime through alerts of potential downtime

• Tracking rental fleet machines and their hours of use

• Documenting machine and operator productivity

• Recovering stolen machines through GPS tracking

A great whole-fleet solution

Count on JDLink Select for 24/7/365 machine-hour, location, maintenance-tracking, and geofencing capabilities delivered to your PC.

Look to Select for a well-rounded telematics solution for advanced machine utilization for every piece in your fleet. JDLink Select is also available as a factory option.

• It's an all-makes fleet solution with expandable sensor capabilities.

• Sends reports via analog and digital cellular technology.

• Tracks machine location and hours.

• Locates stolen machines through superior tracking.

• Monitors service status and advises of scheduled maintenance.

• Features enhanced geofencing, curfew, and maintenance-tracking capabilities.

• Works on any unit with a 12- or 24- volt battery.

Go for the maximum with JDLink Ultimate.

It does everything Select does, plus provides a comprehensive view of engine diagnostics, and adds monitoring of fuel consumption, gear selection, component pressure and temperature, and full-featured diagnostic-information retrieval.

Here are some reasons why Ultimate is the ultimate:

• Monitors service status and advises of scheduled maintenance.

• Empowers through the ultimate level of alerts, warnings, and location and maintenance tracking.

• Full-featured diagnostic trouble codes.

• Monitors all essential machine vitals.

• Reports to you 24/7/365.

• You can view all the data recorded and displayed by machine type on the JDLink Ultimate Data chart.

• Comes standard with three years of service on K-Series 4WD Loaders, all ADTs, 120D–870G LC Excavators, G-• Series Graders, K-Series Backhoes, K-Series Tractor Loaders, 450J and K-Series Dozers, 9R Scraper Tractors, and the 764 High-Speed Dozer.

• JDLink Ultimate is also available as an option on many other pieces of equipment. Check with your local dealer for details.

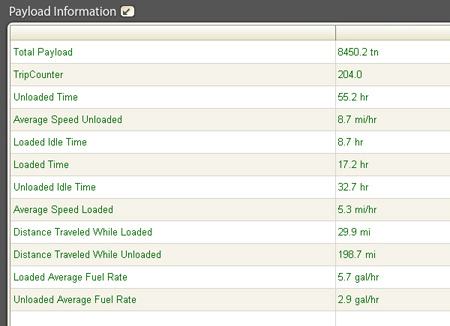

One of the many useful data charts in JDLink Ultimate is payload information for John Deere ADTs.

You can set the allowable operating times and days for a piece of equipment using the curfew feature.

You can easily draw a geofence around a machine so you can be alerted should the machine travel outside its virtual boundary.

Dual-mode option

JDLink Ultimate now offers dual-mode service via cellular or satellite communication as an option. With dual-mode, JDLink will still connect via cellular connection unless a connection cannot be established. Then, JDLink will switch over to satellite mode. A machine communicating via satellite mode will report hours, location, alerts and many other Ultimate data sets. Call-in frequency for a machine communicating in satellite mode is once per day. Red alerts and geofence violations are sent immediately, just like when in cellular coverage.

Rugged and dependable

Modular Telematics GatewayThe new JDLink hardware – known as the Modular Telematics Gateway (MTG) – is built tough to stand up to harsh construction equipment use.

Let's get even more technical. Check out these key MTG specs.

• Connectors: All rated at IP67 or better

• Input voltage: 9-32VDC (switched and un-switched power)

• Current draw (maximum): On, .03A; Sleep/Ears-On, 0.025A; Hibernate, 0.001A

• Sensor/Analog inputs: On/Off digital, 0-3V; Threshold >2.5V “on,” <2.5V “off”

• Operating temperature: -40C to +75C

• Storage temperature: -40C to +85C

• Operating shock: 3-axis, 25G to 85G in 10G steps, 1,000 shocks per step (must pass)

• Bench handling: EAP-004, 90% probability of one dropping one meter onto concrete

• ESD: ISO 1065, 2001

Application Programming Interfaces (API)

An Application Programming Interface (API) serves as an interface between different software programs to facilitate their interaction, similar to the way a user interface facilitates interaction between a human and a computer. APIs are a particular set of rules and specifications that software programs can follow to communicate with each other. A collection of APIs is a toolkit. APIs can be used to integrate JDLink data into your business system.

Two John Deere API toolkits are available. Both of the Deere API toolkits require integrators to sign a John Deere licensing agreement.

Association of Equipment Management Professionals (AEMP) API

Industry telematics standard supported by Deere and other telematics providers. The AEMP API provides basic data that includes:

• Equipment: Make, model, equipment ID, and equipment serial number

• Location and elevation

• Machine hours (cumulative)

• Fuel consumed (last 24 hours)

JDLink Business APIs

John Deere-specific-API advanced feature set that includes:

• Maintenance history and current status

• Historical data

• Equipment summary: Location, run hours, make, model, and equipment ID

• Alert summary: Geofence, curfew, and sensor

• Fuel consumed (last 24 hours)

• Equipment groups

• Curfew

• Geofence

Your John Deere dealer can connect you with John Deere experts who can help you with your JDLink APIs.

Source: http://www.deere.com/wps/dcom/en_US/services_and_support/product_support/construction_technology_solutions/machine_monitoring/machine_monitoring.page?
