Sparta Underground Boom Truck

Jul 13, 2020

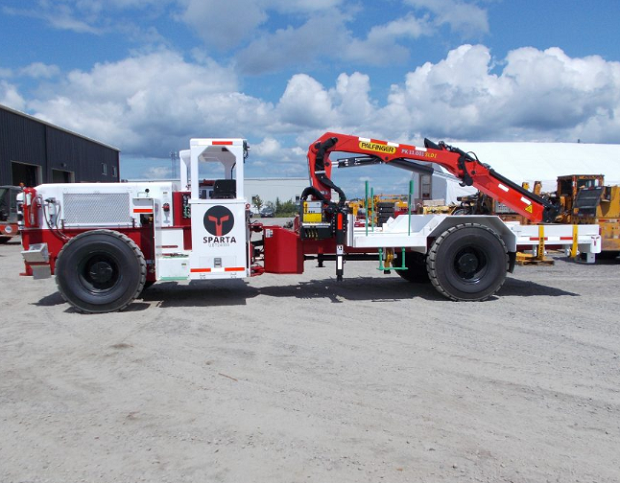

Our SPARTA underground boom trucks have been engineered for high mobility, to quickly and easily navigate the challenging and tough to reach terrain of underground mines. The heavy duty solid steel frame, with lifting capacity of 12,301 pounds, and vast payload capabilities will enhance your mines productivity. You’re in safe hands with the PALFINGER PK 11.001 cranes used on our boom tucks, as they are one of the most economical, reliable and innovative lifting solutions.

UNDERGROUND BOOM TRUCK FEATURES

The SPARTA Boom truck is built with a heavy duty construction frame, and deck capacity of 24,000 pounds. It features a Cummins Diesel QSB 6.7 193 HP at 2200 RPM engine, with a deck length of 3.66 meters and a deck width of 2.44 meters. The SPARTA Boom truck includes lifting capacities of 12,301 pounds, hydraulic outreach of 7.6 meters, and a tramming height of 2.54 meters. Other features include boom stabilizers, 4 wheel drive and articulated steer carrier, ABA brake system, audio backup alarm, led lighting and strobe lights, and a 24V electrical system.

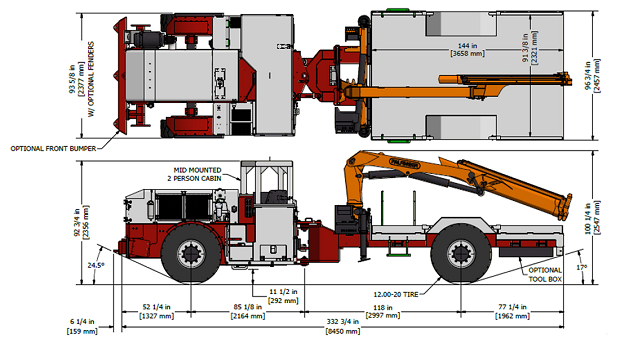

DIMENSIONS

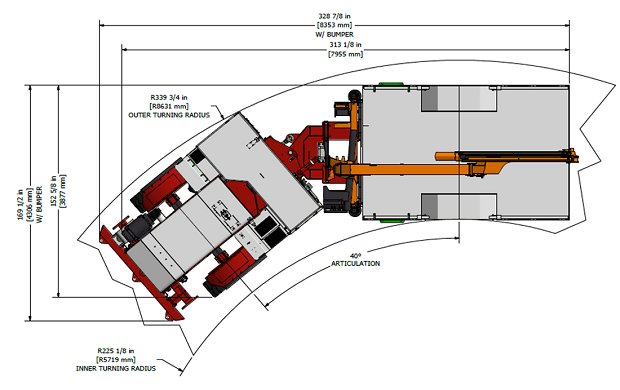

MANEUVERABILITY


TECHNICAL SPECIFICATIONS

Crane: Palfinger PK 11.001 SLD1 (A)
Lifting Capacity: 5,580 Kg (12,301 lbs)
Fully Extended: 1,280 kg (2,822 lbs)
Hydraulic Outreach: 7.6 m (25′)
Boom stabilizer
Engine: Cummins QSB 6.7 Diesel (193 hp), Tier 3
Transmission: DANA 32000 series
Axles: DANA 113 SAHR
Deck Dimensions: 2.44 m (96″) x 3.66 m (144″)
Deck Capacity: 10,866.2 kg (24,000 lbs)
Empty Weight: 12,338 kg (27,200 lbs)
Tramming Height: 2.54 m (100″)
Width/ Length: 2.46 m (97″) / 8.45 m (333″)
Inside Turning Radius: 5.72 m (225″)
Outside Turning Radius: 8.63 m (340″)
Tires: 12.00-20
Pneumatic
Electrical: 24V electrical system
ABA brake system
Audio back up alarm
Engine oil pressure switch
LED lighting installed (4 front + 2 rear + 2 reverse)
Lock out on master switch
Strobe light (white) Options: red, blue, amber
Frame Unit: Heavy duty construction frame
Four wheel drive, articulated steer carrier
ROPS/ FOPS canopy
Spare tire included
One suspension seat, and one mechanical seat
Wheel chocks and brackets
Fire Suppression: Certified ANSUL 4 Nozzle (liquid)
Other: 3 sets of manuals with electronic version
Fire extinguisher
Options: Enclosed environmental cab (AC and heater system)
Central lubrication system (Lincoln)
Wiggins fast fill fuel system
ANSUL “Check fire” with detection system
Air ride seats (qty 2)
Front fenders
Front bumper
Seat belt warning system
Diesel engine Mercedes Benz 906 – 201 HP
