Wink Vibracore Drill Company
The basic drill package comes with the following equipment:
• Drill Head- 37 lb/17 kg
• Power Plant- 61 lb/28 kg
• 16’ Flex Cable- 23 lb/11 kg
• Gin Pole assembly (3 pieces) - 86 lb/39 kg
The WINK Vibracore drill system is lightweight, portable and easy to transport – man portable, helicopter, quad or light truck.
 |
 |
 |
• Two sections for ease of transportation
• 9’ in height
• Dual use base
• 2 speed winch with high and low torque settings
• 3200 lbs pulling power- doubled if adding a running block
• Hand break
• 25’ of heavy duty 5/16 inch cable
• Solid aluminum light weight
 |
 |
Rigid Plastic Sample Tubes
Available in- B, N, H sizes. The clear Butyrate rigid plastic sample tubes are best way to preserve your sample for shipment and subsequent analysis. Plastic end caps ensure the sample stays intact and also seals in fluids.
• B- Sample - 1.75”
• N- Sample - 2.25”
• H- Sample - 3.00”
Soft Poly Sample System
Available in- B, N, H sizes. The soft poly sampling system works well in softer wetter strata’s. The soft poly tubes can be double lined for the dryer, harder, abrasive materials, but does not have the strength that the rigid plastic tubes have. The soft poly is the more economical choice, if the ground material is suitable.
 |
 |
 |

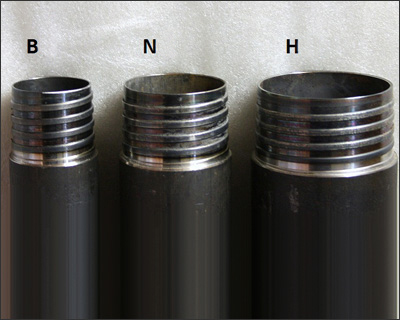

Conventional Drill Rod
The Wink Vibracore drill system has adaptors and accessories to work
with conventional B, N and H drill rods. These rods are available
worldwide and perform well for sampling.
with conventional B, N and H drill rods. These rods are available
worldwide and perform well for sampling.
Specifications
| SIZE | LENGTH | OD | ID | WEIGHT |
| B | 5’ -0” | 2.19” | 1.81” | 21 lbs (9.5 kg) |
| N | 5’ -0” | 2.75” | 2.38” | 26 lbs (12 kg) |
| H | 5’ -0” | 3.50” | 3.06” | 39 lbs (17.5 kg) |
Drill Rods
 |
 |
 |
WINK drill rod incorporates a specially designed thread pattern to ensure a strong locking fit. The
ends are knurled for easy wrench application. The threads screw together easily up to a solid butt
joint. Then pipe wrenches (with snipes) are used to ‘clinch’ or torque the joint.
ends are knurled for easy wrench application. The threads screw together easily up to a solid butt
joint. Then pipe wrenches (with snipes) are used to ‘clinch’ or torque the joint.
Breaking the rods apart is done with the pipe wrenches and snipes. The joint ‘snaps’ to break the
seated rods, then the rods unscrew easily.
seated rods, then the rods unscrew easily.
Specifications
| SIZE | LENGTH | OD | ID | WEIGHT |
| BW | 5’ -0” | 2.25” | 1.75” | 27 lbs (12 kg) |
| NW | 5’ -0” | 2.75” | 2.25” | 34 lbs (16 kg) |
| HW | 5’ -0” | 3.50” | 3.00” | 44 lbs (20 kg) |
