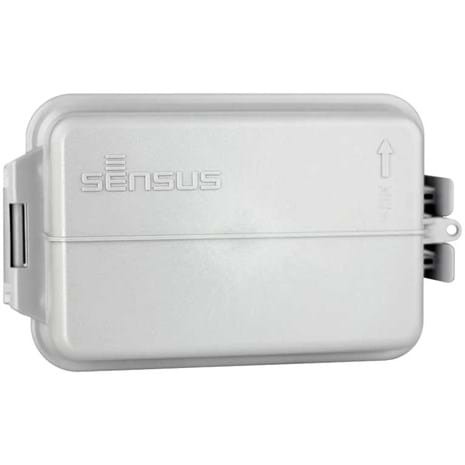

Sensus® Smart Gateway Sensor Interface

You need timely data to make critical and prompt decisions for your community. With a battery-powered Sensus® Smart Gateway Sensor Interface, gas and water utilities can connect to a variety of applications in all locations—even in areas where no power or land-based communications are available.



Leveraging the FlexNet® communication network, you can use the interface application to remotely monitor pressures, temperatures, levels and switches. You can also quickly resolve issues by transmitting and forwarding alarms to utility systems or individuals. What’s more, you can analyze the data you’ve stored over time to develop new insights into your operating conditions.



The sensor interface is flexible. It features two 4-20ma analog inputs and two discrete inputs, making it ideal for a number of possible applications. This cost-effective device gives you the power to gather information previously too difficult to capture.



Benefits to you



Improves operational performance of your system

Enables proactive and preventative maintenance

Enables quick resolution of equipment failures

Decreases the need to deploy field crews

Maximizes your return on investment

Supplements the existing SCADA system

Leverages the existing FlexNet network

No additional power line infrastructure is necessary

Prevents theft and tampering and improves safety by communicating user-configured alarms

Facilitates flexible and scalable installation through your system, including remote locations

Cost-effectively captures and saves extensive data



PRODUCT FEATURES



Battery powered

FlexNet network enabled

Two 4-20 ma, 2-wire analog inputs and two discrete inputs per unit

15 minute data sampling reported four times per day

IP66 packaging for outdoor applications

Mounting tabs for pipe or pole mounting

Intrinsically Safe Class 1 Div. 2

Maintenance free for the life of the product

Interfaces with other system infrastructure such as CMEP and Multispeak

One-year warranty



Specifications



Dimensions: Width: 6.4” x Height: 4” x Depth: 2.8”

Weight: 1.5 lbs.

Frequency Range: 900-950 MHz, 8000 channels x 6.25 kHz steps

Modulation: Proprietary frequency band

Installation Environment: Designed for installation on a pole or pipe where it is not subject to water submergence

Operating Temperature:

-22 °F to +185 °F

-30 °C to +85 °C
