Convoy Technologies, LLC
CT-C1000/M7104 SYSTEM
|
CT-C1000
• Sensor: CMOS 7959
• Resolution: 648x488
• Lens: f=1.8mm
• Lens Angle - Horizontal: 98°
• Lens Angle - Vertical: 74°
• Min illumination: 0Lux (LED ON)
• IR LED: 18 pc
• Night Vision distance: 45 ft
• Dust/Water Resistance: IP67
• Power voltage: 12V
• Operation Temp:-20℃ ~ +70℃
• Video format: NTSC
• Mirror Switch: Not Applicable
• Audio: Avaliable? yes?
• Heat Chip: Optional
• IR Switch: Not Applicable
CT-M7104
• LCD Size: 7"
• Resolution: 800x3 (RGB) x480
• Contrast: 500:1
• Brightness: 510cd㎡
• Viewing Angle: U:50°, D:70°,R/L 70°
• Video Input: 4
• Audio Input: 4
• Trigger Signal: 4
• Waterproof: Not Applicable
• Power Voltage: 12-24v
• Operation Temp: -20C° ~ +70C°
• Video Format: NTSC / PAL
• Sun Visor: Yes
• Bracket / Stand: Yes
• Speaker: 0.5W/50Ω
• Antenna: Not Applicable

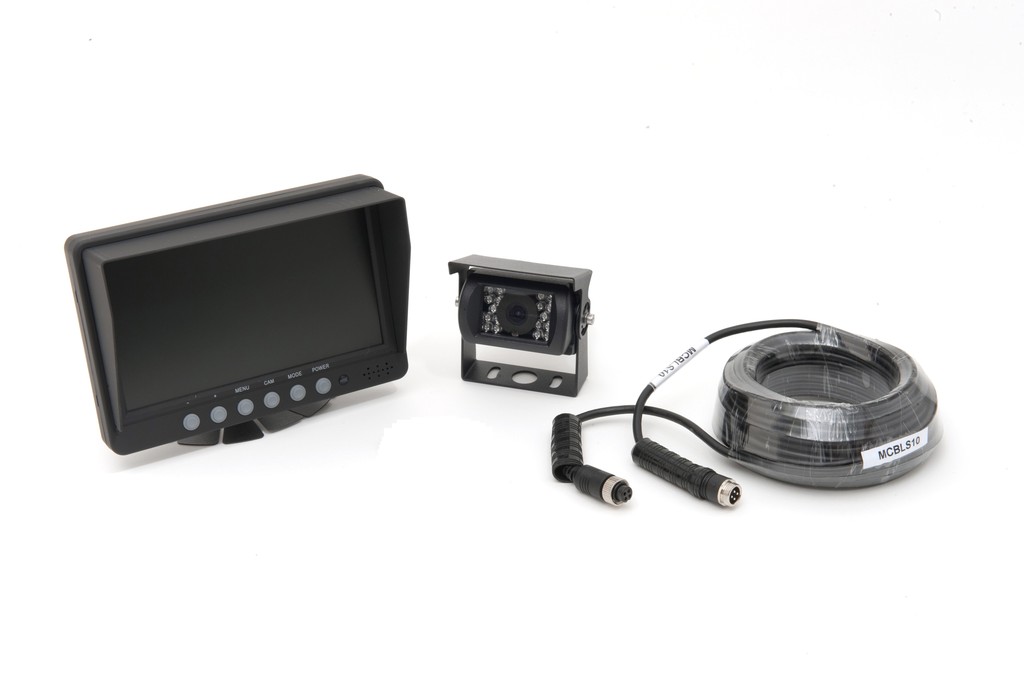

CT-C1000/M7104 System includes:
1x CT-C1000
1x CT-M7104
1x 5-50m Cable
CT-C1000: The Convoy Technologies Performance Series CT-C1000M surface mount rear camera features a high quality CMOS camera for superb picture quality, IP67 environmental rating for reliability, wide angle lens and IR night vision for high performance in low light conditions. Convoy Technologies Performance Series – setting the standard for value and performance.
CT-M7104: The Convoy Technologies Performance Series CT-M7104 7” monitor features a high quality LCD panel for picture clarity, four camera inputs with four triggers for maximum flexibility in any application, and includes a wireless remote and dash mount. Convoy Technologies Performance Series – setting the standard for value and performance.
