Martin Engineering USA
SQC2S™ CLEANER
|
Belt Width: Up to 96 inches
Belt Speed: 1000
Temperature: Between -30 degrees F and 300 degrees F
Corrosive Conditions: Yes
Underground Applications: Yes
Compatible with Reversing Belts or Roll Back: Yes
Accommodates Mechanical Splices: Yes

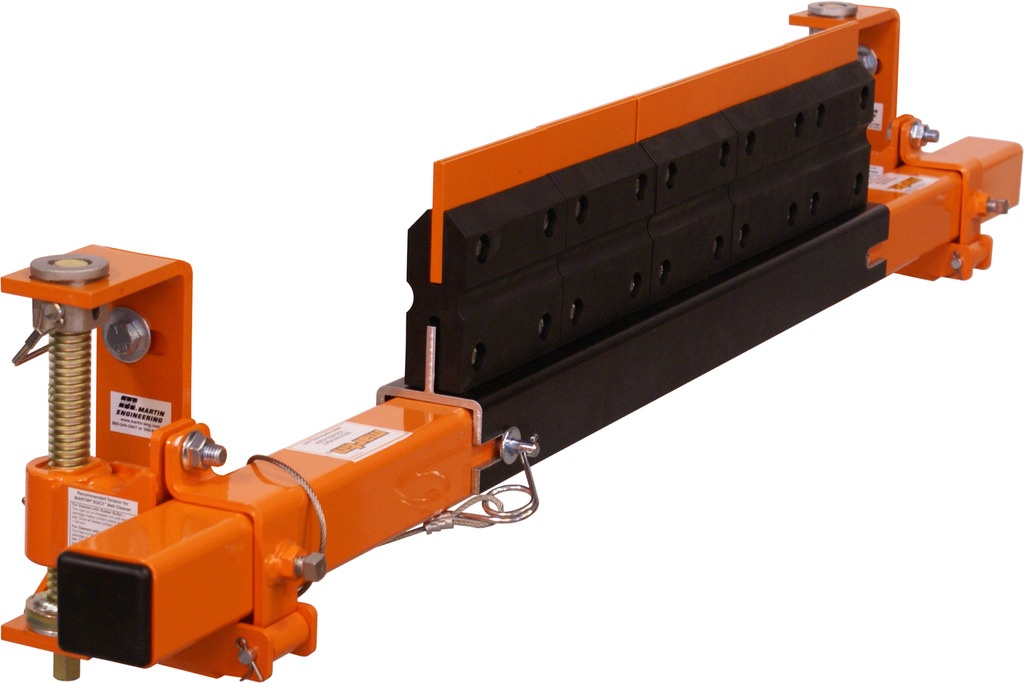

The Martin® SQC2S™ Secondary Belt Cleaner incorporates individually-cushioned tungsten carbide blades for effective conveyor belt cleaning without risk to belt, splice or blade.
Features and Benefits:
• Rugged belt cleaner construction withstands punishing applications, like high-speed belts and high-tonnage loads.
• Patented rubber buffers maintain cleaning pressure while deflecting to allow splices to pass.
• Blade replacement is simple: remove pin, slide out cartridge, service and return.
• Compact secondary belt cleaner design allows installation in close quarters; narrow profile resists material buildup.
• Rubber buffers allow for reversal of belt direction without damage to belt.
Applications:
The Martin® SQC2S™ Conveyor Belt Cleaner is suited for medium to heavy-duty applications, on belt widths from 18 to 96 inches (~400 to 2400 mm) operating at speeds up to 1000 fpm (5.1 m/sec).
Options:
• Martin Engineering’s color-coded high performance urethanes available to suit application.
• Available with acid-resistant blades for belts with clips, acid-resistant for reversing belts, tungsten carbide or urethane.
• Farside Tension Adjuster also available.
