Quatro Industries Ltd.
Round Hay Baler Lacing Systems
|
Round hay baler lacing systems include:
• Hammer System U20
• Hammer System H20
Hammer System U20
Fastener for Industry and Agriculture
The MATO Hammer System U20 is designed for use in belts in the thickness range of 4-7mm. The system is particularly suitable for operation on small pulleys and offers extremely long service life.
The main applications are:
The main applications are:
• Agriculture.
• Specially for splicing round hay baler belts.
• Industry.
Fastener for Industry and Agriculture

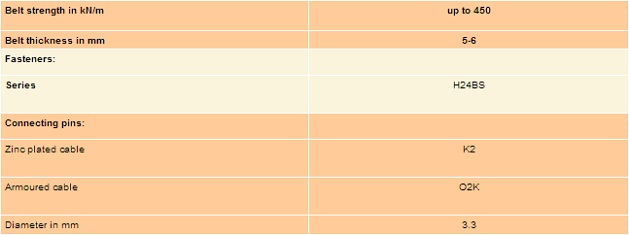

The MATO Hammer System H20 is designed for use in belts in the thickness range of 5-7mm. The system is particularly suitable for operation on small pulleys and offers extremely long service life. The main applications are:
• Agriculture
• Specially for splicing round hay baler belts
• Industry
Baler Belt Lacing Tools
U20 Tools
Profi 5 & Profi 7 Vice Lacer
• Each of the vice tools are supplied with hand punch.
• The lacers are designed for use in a bench vice, the 5 hole will install 5 hooks at atime and the 7 hole will install 7 hooks at a time.
• The full belt width is installed in three steps using the 5 hole version and two steps using the 7 hole version.
Profi 19 Vice Lacer
• Made from high quality hardened tool steel.
• Designed to suit the volumes of belt lacing carried out by dealers.
• A splice width up to 210mm (19 fasteners) can be installed in one step.
• Installation can either be performed with a hammer and manual punch or with the U20 air hammer and punch.
• Wider belts are spliced by progressive step by step installation.
Baler Belt Lacing Tools
H20 Tools
Profi Tool 14" ( 350mm )
• Designed for volume users such as dealers.
• Made from high quality hardened tool steel.
• A splice width of up to 14" ( 350mm ).
• Installation can be spliced by progressive step by step installation.
Eco Tool 7" ( 180mm )
• Made from high quality hardened tool steel.
• A splice width of up to 7" ( 180mm ).
• Installation can either be performed with a hammer or air hammer.
• Belts can be spliced at the baler.
• A user friendly tool for the farmer to use
for U20 & H20 Baler Belt Splicing
Air Hammer
• The air hammer and punch is an alternative to the manual punch, making splice installation quick and easy. Recommended for dealer applications.
Baler Belt Cutter
• A safe and highly versatile piece of equipment for cutting belts up to 12" wide and 1/2" thick, inc many built in features.
• A squaring arm to ensure an accurate square cut belt.
• A clamp to retain the belt while cutting or skiving. The clamp also encloses the blade for safety.
• A guide way to facilitate skiving the belt when using J.D Skiver 18.
• A spare blade housed in the cutter.
• Portable and easy to use, you can cut your belt on the ground, on a bench or the tail gate of your truck.
Skiver For Diamond Top Baler Belt
• A necessary tool which ensures a correctly skived belt prior to installation of the belt splice.
• The skiver removes the top pattern cover of the belt in one pass leaving the correct rebate and finished belt thickness.
• The skiver blade is two sided to give double blade life.
Belt Chamfer Tool
• Easy to use.
• Blade safety lock.
• Instructions on anvil.
• Belt positioning dowels.
• Left & right hand cut.
• Replaceable utility blade.
Belt Cutting Guide & Squaring Template
• Easy to use steel template to cut belt end square.
• Safety slot for guiding belt knife.
• Squaring edge to retain belt.
