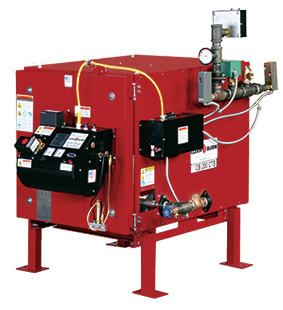

CB-200-CTB
|
The size, capacity, and operation of the appliance shall be designed as shown in the following:
• 200,000 BTU/hr input rating
• 148,000 BTU/hr output rating
• 60 psig tested design pressure
• 30 psig maximum operating pressure
• 38.6 square feet of heating surface
• 5 gallon water volume capacity
• 14.5 gpm design water flow rate @ 18 feet of head
• 1.43 gph oil consumption
• Dedicated spst 20 amp electrical circuit requiring the installation of a 12/2 copper
power supply wire rated @ 115 vac / 60 hz / 1 ph (standard)
• Dedicated spst 30 amp electrical circuit requiring the installation of a 10/2 copper
power supply wire rated @ 115 vac / 60 hz / 1 ph (optional – used when installing
draft inducers or on-board air compressors)
• 2.0 cfm compressed air requirement @ 25 psig
• 8” stack size
• Cabinet dimensions (from burner end without the burner, boiler stand, or accessories
installed) – 45” long x 33¼” wide x 29” high
• Overall dimensions (from burner end with the burner, boiler stand, and all accessories
installed) – 57½” long x 39” wide x 44½” high
• Approximate shipping weight – 835 lbs
The appliance shall have a combustion chamber liner and a liner protector that shall be made from 16-gauge 304 stainless steel and have a ceramic combustion chamber sleeve and mounting stand and a ceramic combustion target. A 3” diameter opening, with a spring closing flame observation port door shall be provided at the front of the appliance on the front swing out door. This port shall be located on the left side of the front swing out door just to the left of the burner so that an inspection of the combustion chamber area can be made.
