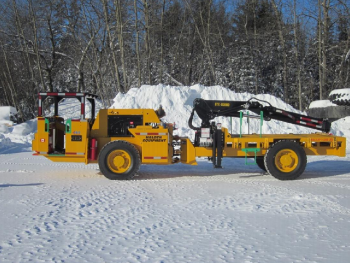

BTX 4100
FEATURES
• Heavy duty frame construction providing a stable platform.
• Reliable and proven power train components with integrated torque converter
• Four-wheel drive, articulated steer carrier
• Operator suspension seats come with seat belts
• Spring applied hydraulic release parking and emergency brakes on both axles
• Rear stabilizers
• Strobe light
• Auto greasing system
FEATURES
• Heavy duty frame construction providing a stable platform.
• Reliable and proven power train components with integrated torque converter
• Four-wheel drive, articulated steer carrier
• Operator suspension seats come with seat belts
• Spring applied hydraulic release parking and emergency brakes on both axles
• Rear stabilizers
• Strobe light
• Auto greasing system
ENGINE Mercedes 904
TRANSMISSION Clark 20,000 series Power Shift Transmission
AXLES Dana 123
TIRES 10:00 x 12 mine rated pneumatic tires
ELECTRICAL
24 volt electrical system
NEMA 4 compliant panels
Control warning system
HYDRAULIC SYSTEM
• All hoses and fittings with SAE 37 deg
• JIC Aeroquip
BOOM
• J&S Manufacturing Model 5BX, 3 Section Boom
• Min loading range of 2500 kg / Max loading range of 6000 kg
Deck
• 14,000lbs capacity
• 6’ x 9’ deck dimensions
EQUIPPED WITH
• Fire suppression system Ansul 4 nozzle
• ROPS/FOPS canopy
AVAILABLE OPTIONS
• Enclosed cab with AC and heater
• Check Fire System. includes 8 nozzles and two 30lbs tank
• Wing filled or solid tires
• Boom extension for additional deck space
• Hiab boom
