Walden Group

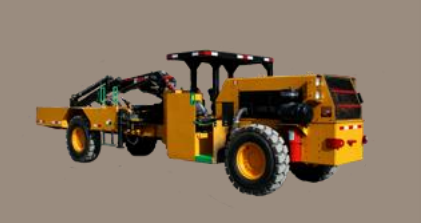

BTX 5100

FEATURES

• Heavy duty frame construction providing a stable platform.
• Reliable and proven power train components with integrated torque converter
• Four-wheel drive, articulated steer carrier.
• Operator and passenger suspension seats
• Spring applied hydraulic release parking and emergency brakes on both axles.
• Front stabilizers
• Clear strobe light
• Palfinger Boom
BTX 5100
FEATURES

• Heavy duty frame construction providing a stable platform.
• Reliable and proven power train components with integrated torque converter
• Four-wheel drive, articulated steer carrier.
• Operator and passenger suspension seats
• Spring applied hydraulic release parking and emergency brakes on both axles.
• Front stabilizers
• Clear strobe light
• Palfinger Boom

ENGINE Mercedes 906

TRANSMISSION Clark 32000 Series Power Shift Transmission

AXLES Dana 113 Axles

TIRES 12:00 x 20 mine rated pneumatic tires

ELECTRICAL

24 volt electrical system
Unit Details
Unit Weight 24,000lbs

HYDRAULIC SYSTEM

All hoses and fittings with SAE 37 deg
JIC Aeroquip

Deck

• 24,000lbs capacity
• 8’ x 12’ deck dimensions

EQUIPPED WITH

• Fire suppression system Ansul 4 nozzle
• ROPS / FOPS canopy
• Lincoln Lube auto greasing system
• 1 operator and 2 passengers seats

AVAILABLE OPTIONS

• Enclosed cab with AC
• Deutz, CAT, Cummings engines available
• Modified custom decks
