BOOSTER - HYDRO MPC
|

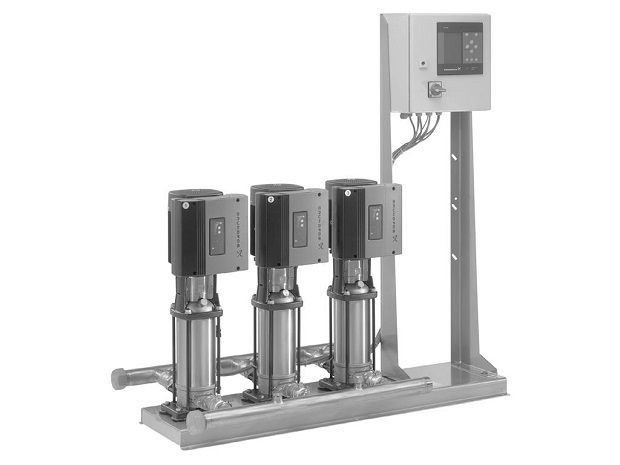

As standard, Hydro MPC booster sets consist of two to six CR(E) pumps connected in parallel and mounted on a base frame provided with a control cabinet and all the necessary fittings. Most of the booster sets are available with either CR pumps and/or CRE pumps. Hydro MPC booster sets are divided into many groups based on control variants.
Grundfos Hydro MPC BoosterpaQ booster sets are designed for transfer, pressure boosting and circulation of water in:
Domestic water pressure boosting
High rise buildings, hotels, and hospitals
Irrigation
Industry
Municipal water transfer
HVAC
As standard, Hydro MPC booster sets consist of two to six CR(E) pumps connected in parallel and mounted on a base frame provided with a control cabinet and all the necessary fittings. Most of the booster sets are available with either CR pumps and/or CRE pumps. Hydro MPC booster sets are divided into many groups based on control variants.
Hydro MPC-E
Booster sets with two to six CRE pumps. The terminology CRE means CR pump that includes an integrated variable frequency drive (VFD)/motor with sizes from 1 to 10 Hp.
Hydro MPC-E(CUE)
Booster sets with two to six CR pumps, each connected to external CUE VFD.
Hydro MPC-F
Booster sets with two to six CR pumps connected to one external VFD. The speed-controlled operation alternates between the pumps of the booster set.
Hydro MPC-S
Booster sets with two to six constant speed CR pumps
