HYDRO SOLO-E SERIES
|

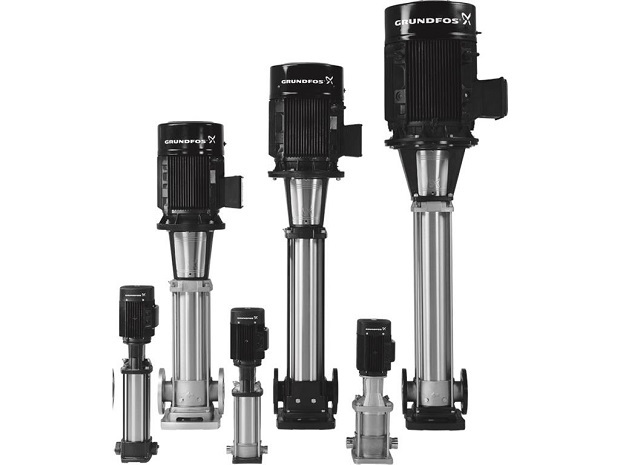

A Hydro Solo-E system consists of a CR pump which is a non-self-priming, vertical multistage centrifugal pump. The pumps are availables with a Grundfos standard motor (CR pumps) or a frequency-controlled motor (CRE pumps). All pumps are equipped with a maintenance-free cartridge mechanical shaft seal.
A Hydro Solo-E system consists of a CR pump which is a non-self-priming, vertical multistage centrifugal pump. The pumps are availables with a Grundfos standard motor (CR pumps) or a frequency-controlled motor (CRE pumps). All pumps are equipped with a maintenance-free cartridge mechanical shaft seal.
On the discharge side of the pump is fitted a stainless steel discharge pipe, a check valve, an isolating valve and a pressure transducer
A pressure gauge is also present in the system to measure the discharge pressure
A frequency controlled motor (Grundfos MLE motor) drives the CR pump for 1 phase 230V (1/2-1 ½ Hp) and 3 phase 460V (2-10 Hp) versions of Hydro Solo-E booster sets
All other 3 phase versions of Hydro Solo-E booster sets come with a CR pump driven by an externally mounted Variable Frequency Drive (VFD)
Installation
A Hydro Solo-E booster set must be installed in a well ventilated room to ensure sufficient cooling for the pump. Hydro Solo-E is not suitable for outdoor installation
The booster set should be placed with sufficient clearance around it
3 phase versions must have a disconnect ON/OFF switch for the supply voltage, which is not provided as a standard item with the unit. The main components of the Hydro Solo-E include the pump, motor and the Variable Frequency Drive
Motor
Grundfos standard motors – With external VFD
3 x 208-230V, 3 x 460V (15-30Hp), 3 x 575V
CR, CRI and CRN in a Hydro Solo-E system pumps are fitted with a Grundfos specified motor. The motors are all heavy-duty 2-pole, NEMA C-frame
Frequency-controlled motors – MLE motors (integrated VFD)
1 x 230V and 3 x 460V (2-10Hp)
CRE and CRIE pumps in a Hydro Solo-E system are fitted with a totally enclosed, fan-cooled, 2-pole frequency-controlled motor
Benefits
Eliminates control valves and problematic pressure storage tanks
Harmonic distortion protection built in
Lower energy consumption
Less pump noise
Easy to set up and operate
Comprehensive protection of drive, motor and pump Equipment
Reduced maintenance
Eliminates current in-rushes on the AC line
Protection from extreme voltage and temperature conditions
Features highlights
Sleep mode automatically stops and starts the drive as determined by user-programmed levels at low demand - saves additional energy and reduces wart on drive pump components
Electronic thermal relay provides motor overload protection
AEO (Automatic Energy Optimizer) reduces energy consumption and audible motor noise
Fast response time for control inputs
Standard protection features includes phase-to-phase short; phase-to-ground short; input and output protection
Built-in DC link introductors reduce hormonics
Built in H-O-A (Hand-Off-Auto) switch function on keypad
Alarm, warning and on LEDs indicate drive status
