Rajant Corporation
ES1-IS-2450 Hazardous Environment Enclosure
|
Rajant has partnered with Ventev to bring you the ES1-IS-2450, a Class I, Div1 and Class II, Div1 ready enclosure with the Rajant BreadCrumb® ES1 inside for use in IIoT applications in hazardous locations.
The ES1-IS-2540 is a plug-and-play solution ideal for establishing a highly resilient Kinetic Mesh® network in refineries, chemical plants, drilling and offshore platforms, and mining operations.
ES1-IS-2450 Features & Benefits

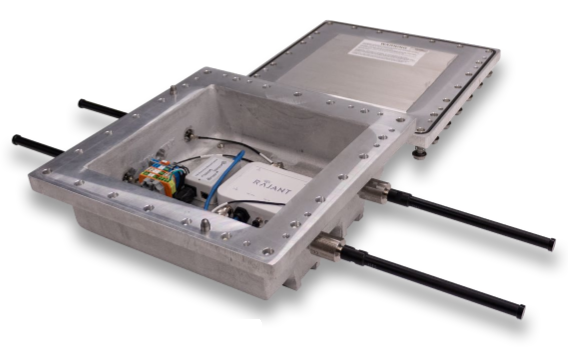

The ES1-IS-2450 comes with an explosion-proof enclosure and antenna couplers to let you take advantage of the ES1’s powerful, commercial-grade meshing capabilities in hazardous settings. It contains two transceivers with four external antenna ports as well as Ethernet and Wi-Fi access point interfaces to enable data, voice, and video applications with multiple mounting options.
- Listed for Class I, Division 1 & 2, Groups B, C, D; Class II, Division 1 & 2, Groups E, F, G; and Class III; UL, IECEx and ATEX certifications ensure it can be deployed globally.
- Combines Kinetic Mesh backhaul, Wi-Fi access, and layer2 switching across interfaces in a single device.
- Features a Cu-free aluminum body and cover, Neoprene gasket and stainless cover bolt and aluminum hinge.
- Provides high bandwidth for data, voice, and video applications, with integrated Wi-Fi Access Point service and scalability to hundreds of fixed and mobile nodes.
