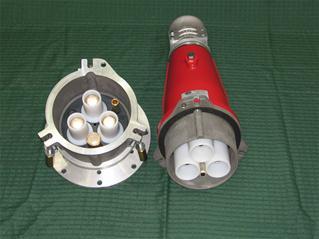

15kV, 600A Cable Mount & Equipment Mount Couplers
|
These cable couplers are rugged and specially designed for use in mines and tunneling. High voltage couplers can be manufactured to be compatible with most other competitor couples of this type of North American design. These couplers are fully sealed when installed and can be used in wet and dusty environments as they are designed to be IP58 compliant.
These cable couplers are rugged and specially designed for use in mines and tunneling. High voltage couplers can be manufactured to be compatible with most other competitor couples of this type of North American design. These couplers are fully sealed when installed and can be used in wet and dusty environments as they are designed to be IP58 compliant.
Interchangeable with:
Three Bolt (Standard Design)
ACME Thread (PLM, TJB)
Twist Lock (PLM)
Typical Applications Include:
Connections of Shovel/Drills in mine operations
Tunnel Boring Machines
Container Port Cranes
Lumber Portal Cranes
Features and Benefits
Lightweight cast Aluminum components that provide strength and coupler durability.
MCS manufactured special strain relief entrance fitting:
Special self-centering entrance fitting ensures balanced cable strain relief and water sealing
Individually machined phase insulators made of high dielectric polymer:
Made of break resistant material and individually removable.
Individual Phase contacts and insulators can be shielded to ground
Machined high strength stainless steel and bronze corrosion resistant hardware
Unique set screw or compress style cable connector system eliminates conductor pull-out under normal operating conditions.
Silver plated contacts (optional)
Coupler Options
Inter-phase ground shielding: Ensures that all faults would be phase to ground, not phase to phase.
Powder or Epoxy coated body components
Fiber-Optics capable
Multiple Interconnection options
Longer main body to accommodate larger cable and conductors.
Adapter plates for a variety of cable strain relief options.
Coupler Accessories
Skids
Junction Boxes
Electrical Rating
Voltage: 15000 Volts AC
Current: 600 Amps
Standards
Tested to IEEE 386-1995
For Switchgear Mounted Couplers - MCS couplers meets requirements of CSA C22.2 No. 31-04
Manufactured to meet IP67H design standards.
