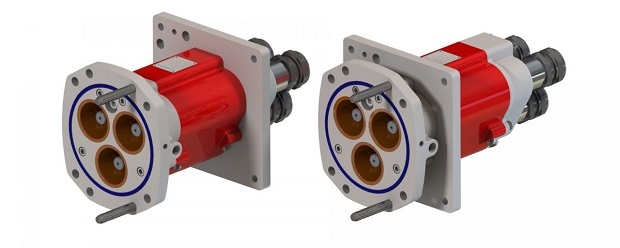

11KV ADAPTOR
|
PBE Mining – CouplerCo provide reliable and robust low and medium voltage cable connections suitable for mining, tunneling and industrial applications. Our adaptors are designed and manufactured using state of the art digital techniques which has resulted in superior mechanical attributes and exceptional electrical performance that far exceeds the requirements of Australian standards.
PBE Mining – CouplerCo provide reliable and robust low and medium voltage cable connections suitable for mining, tunneling and industrial applications. Our adaptors are designed and manufactured using state of the art digital techniques which has resulted in superior mechanical attributes and exceptional electrical performance that far exceeds the requirements of Australian standards.
Ease of fitting and maintenance has been incorporated into our adaptor design; this combined with a stylish appearance makes our adaptors your number one choice.
MATERIALS
Housing: Aluminium
Mounting Plate: Aluminium
Primary Seals: Silicone Rubber
Sealing Spigots: Stainless Steel
Fasteners: Stainless Steel
IP68 Rated
Phase Connectors: Silver Plated Copper
SPECIFICATIONS
Rated Voltage: 11kV
Rated Current: 800A
Weight (unfilled): 16kg
Overall Length: 414mm
Height (at flange): 254mm
Width (at flange): 254mm
Cable Capacity: 40mm Dia
Available with 4 or 8 bolt face configuration
