11KV EX-D ADAPTOR
|
Designed and manufactured using state of the art digital techniques which has resulted in superior mechanical attributes and exceptional electrical performance that meets and exceeds the requirements of; IECex-IEC 60079, IEC 60093, IEC60112, IEC 60243, AS/NZS 60079, AS/NZS 1300:2009, ISO 9001, ISO/IEC 80079-34, AS 60529-2004 Standards.

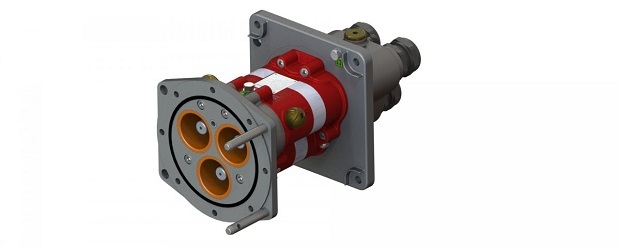

WORLD’S FIRST IP68 STAINLESS STEEL MODULAR Ex-d ADAPTOR
PBE Mining – CouplerCo is proud to introduce the World’s first stainless steel Ex-d Adaptor / Gear Mount.
Designed and manufactured using state of the art digital techniques which has resulted in superior mechanical attributes and exceptional electrical performance that meets and exceeds the requirements of; IECex-IEC 60079, IEC 60093, IEC60112, IEC 60243, AS/NZS 60079, AS/NZS 1300:2009, ISO 9001, ISO/IEC 80079-34, AS 60529-2004 Standards.
The CouplerCo 11kV Ex-d Stainless Steel Adaptor is fully Ex-d Equipment Certified – meaning after termination by qualified personel there is no need to return the adaptor to the authorities for retesting and for issue of a final Ex-d Equipment Certificate…saving you thousands of dollars on down time.
MATERIALS
Housing: Stainless Steel
Primary Seals: Silicone Rubber
Fasteners: Stainless Steel
Phase Connectors: Silver Plated Copper
Phase Indicators: Brass/Neon Bulb
SPECIFICATIONS
Rated Voltage: 11kV
Rated Current: 800A
Weight (unfilled): 33kg
Length Overall: 436mm
Height (at flange): 254mm
Width (at flange): 254mm
Cable Capacity: 300mm2 XLPE
Single Conductors 26.0mm Dia
Available with 8 bolt face only
