PBE Group

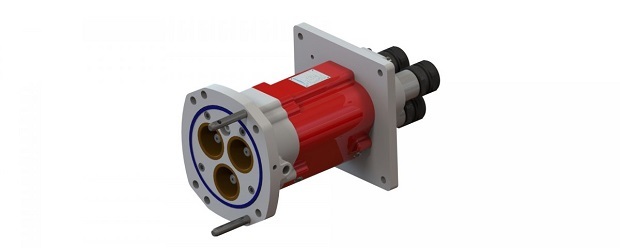

22KV ADAPTOR
|
PBE Mining – CouplerCo provide reliable and robust low and medium voltage cable connections suitable for mining, tunneling and industrial applications. Our adaptors are designed and manufactured using state of the art digital techniques which has resulted in superior mechanical attributes and exceptional electrical performance that far exceeds the requirements of Australian standards.
PBE Mining – CouplerCo provide reliable and robust low and medium voltage cable connections suitable for mining, tunneling and industrial applications. Our adaptors are designed and manufactured using state of the art digital techniques which has resulted in superior mechanical attributes and exceptional electrical performance that far exceeds the requirements of Australian standards.
Ease of fitting and maintenance has been incorporated into our adaptor design; this combined with a stylish appearance makes our adaptors your number one choice.
MATERIALS
Housing: Aluminium
Cable Clamp Saddle: Alloy Steel
Primary Seals: Silicone Rubber
Sealing Grommets: Silicone Rubber
Fasteners: Stainless Steel
Handles: Stainless Steel
Phase Connectors: Silver Plated Copper
SPECIFICATIONS
Rated Voltage: 22kV
Rated Current: 425A
Weight (unfilled): 19kg
Overall Length: 465mm
Height (at flange): 254mm
Width (at flange): 254mm
Cable Capacity: 40mm Dia
Available with 4 bolt face only
