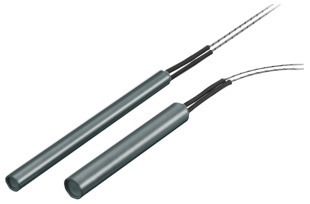

C - Cartridge Heater
Features & Benefits At A Glance
• Available to fit hole diameters ranging from 0.25" to 1.30" (6 mm to 32 mm)
• Standard available lengths range from 1" to 36" (25 mm to 914 mm), depending on hole diameter and wattage selected; • lengths up to 100" (2540 mm) available on custom order
• Standard available wattages range from 30W to 4.7kW, depending on hole diameter and heater length selected; special wattages available on custom order
• Available in standard voltages of 120V or 240V; special voltages available on custom order
• Special sheath/casing materials available on custom order
• Moisture resistant welded end cap provides a gas tight seal; optional lead wire construction includes silicon potting, Teflon® seals and Teflon® leads
• Standard 10" (254 mm) fibreglass insulated nickel leads; special lead lengths or spliced extended leads available on custom order
• Optional armoured cable or wire mesh sleeving for mechanical protection of lead wires
• Optional thermocouple available
• Optional ground wire available
The Caloritech™ C Cartidge Heater represents the highest commercial grade of heater available on the market today. They feature high grade nickel chromium resistance wire uniformly wound on a premium quality MgO core and welded to termination points; the core is then carefully centered in a compacted and MgO-filled high temperature 321 stainless steel casing, and stranded leads with silicon-impregnated mica glass insulation are fixed to the termination points.
These heaters offer a convenient and efficient means of heating metal dies, platens, molds, heat sealing tools, hot plates and more. Most units can also be fitted with threaded bushings for liquid heating applications.
