CCI Thermal Technologies

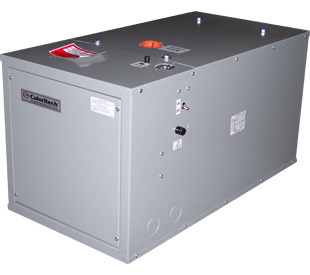

Packaged Circulation Heater
|
Features & Benefits At A Glance
• 12" SCH. 20 galvanized steel shell designed to accept one or two heavy duty flange heaters with copper sheathed heating elements; shell is insulated and protected with a prepainted sheet metal casing; shell designed to the ASME code for pressure vessels
• standard control equipment contained within the heater; control compartment at one end of the casing
• hinged inner panel allows convenient access to the heaters
• 1.5" NPT inlet and outlet; 1.5" NPT drain
• other standard features include mounting legs, magnetic contactor(s), splitter block and on-off switch
• standard wattages range from 6 kW to 60 kW
• standard voltages range from 208V to 600V
• unit weights range from 189 to 209 lbs (86 to 95 kg)
• a variety of additional features available, depending on the heater application configuration selected -- please check Catalog for details
• CSA approved; GOST approved for global markets
The Caloritech™ CWCB Packaged Circulation Heater is designed for installation in circulating loops where space is limited. The basic unit can be equipped with various control packages which will allow the heater to function as a commercial swimming pool heater, a side arm domestic water heater or commercial dishwasher booster heater, or a commercial hot water furnace for comfort or process heating.
