DYNOMIX™

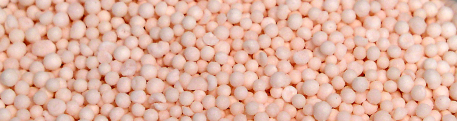

DYNOMIX is a prilled ammonium nitrate/fuel oil explosive mixture suitable for use in dry borehole conditions. It is available packaged in a variety of sizes and types of bags or delivered in bulk. For bulk delivery, it can be premixed and delivered to overhead storage bins, mixed on-site with stationary equipment and loaded into blast hole delivery trucks or mixed as it is loaded down-the-hole with specialized mobile equipment. DYNOMIX is used for quarry, surface mining, construction and underground blasting operations.



Application Recommendations



• DYNOMIX is not recommended for wet blasthole conditions and is not for use in ground containing reactive sulphides. Consult your Dyno Nobel representative regarding applications involving borehole dewatering and plastic borehole liners

• DYNOMIX is suitable for use in ground with a temperature range of 0°C to 55°C (32°F to 131°F). For applications in ground with temperatures outside this range contact your Dyno Nobel representative

• The loading density of DYNOMIX is subject to change (i.e., density poured from a bag differs from pneumatically placed or mobile equipment delivered densities). Typical application loading densities are: 0. 82 to 0.83 g/cc (poured 3 in to 5 in); 0.90 to 0.95 g/cc (pneumatic 1¼ in to 2 in) and 0.85 to 0.87 g/cc (bulk truck delivered 3 in to 17½ in). Loading in holes below the specified minimum diameter may result in deflagration • DYNOMIX has a shelf life of 3 months from date of manufacture when stored at temperatures between -17º C and 32º C (0º F and 90º F)

• ALWAYS use an adequately sized cast booster or packaged explosive with a high detonation pressure to prime DYNOMIX

• When two primers are necessary, place one near the bottom and one near the top of the main charge in the borehole. Additional primers should be used whenever the blaster feels that separations or blockages may have occurred as the borehole is being loaded. It is imperative that all primers in the borehole be either threaded onto a detonating cord downline or upline or be individually primed with a detonator connected to the blast circuit at the surface

• Use of detonating cord in boreholes with DYNOMIX can cause loss of energy, especially where high coreload detonating cords are used in smaller diameter holes. High coreload detonating cords may initiate DYNOMIX at low order. Where detonating cord is used to initiate Nonel SL detonators, use lowest recommended coreload detonating cord



Transportation, Storage and Handling



• DYNOMIX contains a high percentage of industrial-grade ammonium nitrate prills which are susceptible to breakage from temperature cycling, humidity and mechanical handling. Temperature cycling and humidity may cause packaged product to harden and material stored in bulk bins to increase in fines, cake and lump. Inventory should ALWAYS be rotated by using the oldest product first. Bulk bins should be emptied and cleaned routinely to prevent build up on walls

• For recommended good practices in transporting, storing, handling and using this product, see the Safety Library Publications of the Institute of Makers of Explosives

• Explosives must be transported, stored, handled and used in conformity with all applicable federal, state, provincial and local laws and regulations.
