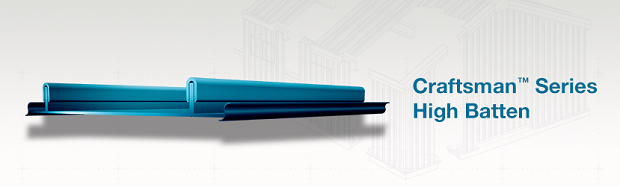

Craftsman Series High Batten

The Craftsman™ Series is a snap-on batten roof system, available in small, large and high battens: small (SB), large (LB) and high batten (HB). The pan and batten are manufactured separately to maximize design flexibility and for ease of installation at difficult hip, valley and slope change conditions.



Gauge

24 gauge (standard)

22 gauge optional

26 gauge optional



Length

Maximum 40′ (standard), other lengths are available as special requests



Dimensions

12″ wide either 1″ or 2″ high

16½” wide either 1″ or 2″ high



Finish

Galvalume® (standard)

Signature® 200

Signature® 300

Limitations

Minimum Slope – 3:12



Fasteners

SH Clip (concealed fastening system)



Usage

The Craftsman™ Series is a water-shedding system and can be used for roofs and mansard only when installed over a water-proofed solid substructure with a minimum roof slope of 3:12. The Craftsman™ Series design makes complicated building transitions simple without the necessity of flashings. Slope changes from roof to fascia to soffit can be made with one continuous pan and batten. A concealed clip securely locks the batten to the panel while allowing for expansion and contraction.



Advantages & Attributes



Snap-On Batten Roof System

Variable Panel Width

• 12″

• 16½”

Variable Batten Width & Height

• ⅜ X 2

Requires Solid Substrate

• Plywood / OSB

• Lt. Wt. Concrete

• Steel Decking

Excellent in difficult installations

• Hip

• Valley

• Slope Changes

Complicated Roof Slope Transitions

• Roof to Fascia to Soffit with Continuous Batten

Min. Roof Slope 3:12

Concealed clip allows for Expansion & Contraction
