Robertson Building Systems

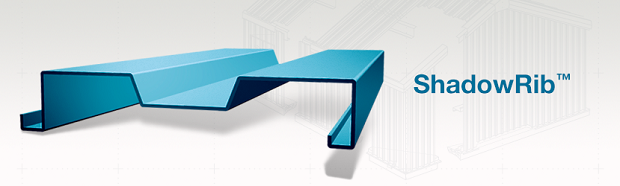

ShadowRib
|
ShadowRib™ panel combines aesthetics, economics and function to bring definition to metal structures. This panel is a proven performer and a versatile tool to the designer. Structural strength in the ShadowRib panel is accomplished without sacrificing appearance or design flexibility. The fluted face creates distinctive shadow lines.
ShadowRib™ panel combines aesthetics, economics and function to bring definition to metal structures. This panel is a proven performer and a versatile tool to the designer. Structural strength in the ShadowRib panel is accomplished without sacrificing appearance or design flexibility. The fluted face creates distinctive shadow lines.
Gauge
24 gauge (standard)
22 gauge
Length
Maximum recommended 40′-0″
Dimensions
16″ wide by 3″ high
Finish
Galvalume Plus®
Signature® 200
Signature® 300
Fasteners
Concealed fastening system. Panels may be secured to the structure from outside the building with the ShadowRib concealed clip, or from inside the building with an expansion fastener. Both are positive fastening methods that create a secure interlock between panel and structure.
Usage
The ShadowRib panel can be used for walls, fascias and equipment screens. Apply the panel over light-gauge framing, purlins, girts, structural steel and joists.
Advantages
Enhances architectural application
25-year finish warranty
25-year premium paint finish warranty, ultimate resistance to chalking and color changes
Enhances appearance by eliminating end laps and improves ease of installation
Embossing the metal reduces glare and the potential for oil-canning
Panels carry a UL® “Class A” fire rating
The panel can be applied to light gauge framing, purlins, girts, structural steel and joist
In many instances, the panel can span from floor to ceiling without interior support
Ready for application of a variety of insulation methods into the 3″ cavity
