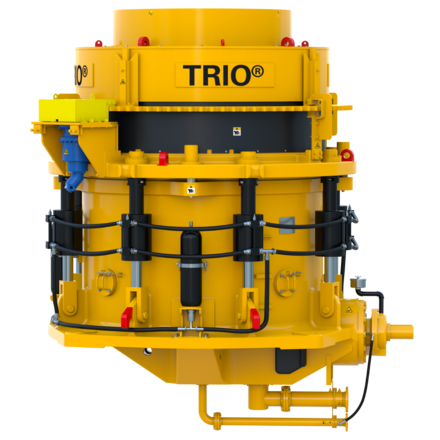

Trio TP Series Cone Crushers

Our Trio® TP cone crushers are designed for customers who wish to create cubical aggregates or who desire maximum size reduction at a high production rate. This range of cone crushers come Synertrex® enabled making them capable of connecting to our cloud-based monitoring platform. Cast in high strength, alloy steel with an optimised design, our Trio® TP cone crushers deliver maximum strength and durability.



Key features / benefits:

All of our Trio® TP cone crushers feature a steep crushing chamber angle, a large crushing stroke, high pivot point, and optimum speed to deliver a finer product through increased inter-particle comminution.



Being Synertrex® enabled means you can monitor the operation and health of your crusher, whether on-site or away. This technology also provides component replacement recommendations and machine optimisation advice.



The closed side setting (CSS) of our Trio® TP cone crusher can be easily adjusted using the threaded bowl and hydraulic gear drive. Operating controls consist of a fully integrated hydraulic console with push button controls for clamping, clearing and adjustment. This crusher can be operated remotely using a PC and be fully integrated into the plant's control system if required.



In addition, our Trio® TP series cone crushers feature a self-contained, climate-controlled oil lubrication skid with integrated programmable logic controller (PLC) monitoring condition sensors . These crushers also utilise bronze bearings designed for extended life under maximum load.



Steep crushing chamber angle

Large crushing stroke

High pivot point

Synertrex® enabled

Threaded bowl with hydraulic gear drive for precise closed side setting (CSS) adjustment

Fully integrated hydraulic console with push button controls

Bronze bearings

Self-contained, climate-controlled oil lubrication skid with integrated Programmable Logic Controller (PLC) monitoring condition sensors.

Spiral cut bevel gear set with hardened teeth and pinions to ensure quiet, smooth and efficient horsepower transmission.

Cast high strength alloy steel with an optimised design to deliver maximum strength and durability.



Applications:



Secondary stage crushing circuits

Tertiary stage crushing circuits

Quaternary stage crushing circuits

Specification size and/or shape for aggregate crushing

Crushing ore for maximum reduction, leaching or milling operations



Materials:



Our Trio® TP cone crushers have been designed to match horsepower, crushing force and crushing volume to deliver maximum performance.  All key components feature high alloy steel castings and forgings for long and reliable performance under severe crushing conditions. The pedestal main shaft and spiral bevel gears are also machined from high alloy steel forgings.



Liner options:



Weir ESCO® manufactured manganese liners



Processes



Crushing and Grinding (Mining)

Crushing and Grinding (Aggregates)
