25kV, 600A Shielded Cable & Equipment Couplers

Features and Benefits

• Lightweight cast Aluminum components that provide strength and coupler durability.

• MCS manufactured special strain relief entrance fitting:

• Special self-centering entrance fitting ensures balanced cable strain relief and water sealing

• Individually machined phase insulators made of high dielectric polymer:

• Made of break resistant material and individually removable.

• Individual Phase contacts and insulators can be shielded to ground

• Machined high strength stainless steel and bronze corrosion resistant hardware

• Unique set screw or compress style cable connector system eliminates conductor pull-out under normal operating conditions.

• Silver plated contacts (optional)

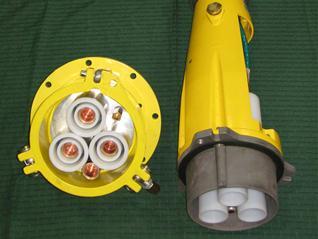

25kV, 600A Shielded Couplers

These cable couplers are rugged and specially designed for use in mines and tunneling.

High voltage couplers can be manufactured to be compatible with most other competitor couples of this type of North American design.

These couplers can be used in wet and dusty environments as they are designed to be IP58 compliant.

Interchangeable with:

• Three Bolt(Standard Design)

• ACME Thread (PLM, TJB)

• Twist Lock (PLM)

Typical Applications Include:

• Connections of Shovel/Drills in mine operations

• Tunnel Boring Machines

• Port Container Cranes

• Lumber Portal Cranes

Coupler Options

• Inter-phase ground shielding: Ensures that all faults would be phase to ground, not phase to phase.

• Powder or Epoxy coated body components

• Fiber-Optics capable

• Multiple Interconnection options

• Longer main body to accommodate larger cable and conductors.

• Adapter plates for a variety of cable strain relief options.

Coupler Accessories

• Skids

• Junction Boxes

Electrical Rating

• Voltage: 25000 Volts AC

• Current: 600 Amps

Standards

• Tested to IEEE 386-1995

• For Switchgear Mounted Couplers - MCS couplers meets requirements of CSA C22.2 No. 31-04

• Manufactured to meet IP58 design standards.
