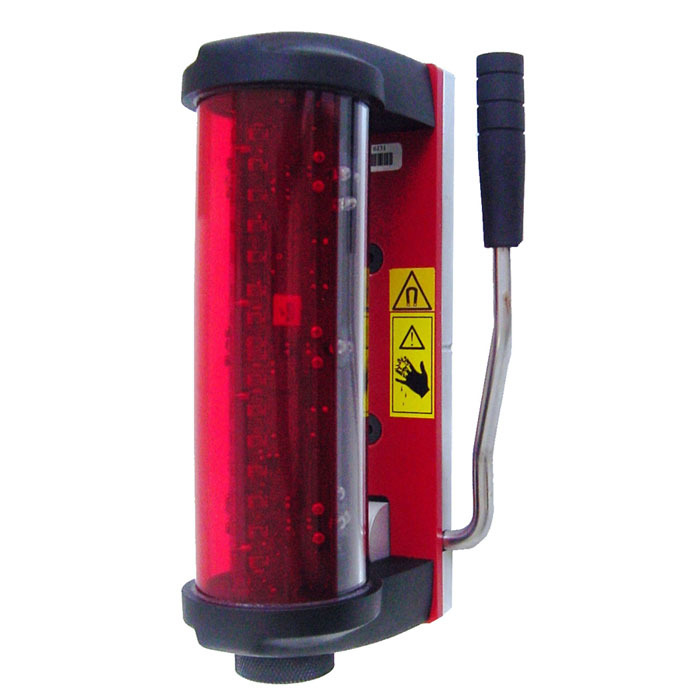

AGL MR240 Laser Receiver
|
Specifications
• Range: 650 ft. (200 m) varies with laser used
• Accuracy*: Fine: 1/4” (6 mm) Coarse: 1” (30 mm)
• Capture height: ~6” (15 cm)
• Reception angle: 240° nominal
• Battery life: approx. 130 hours - 3 AA alkaline
• Attachment: Built-in magnet mount
• Auto. Shutoff: After 1 hour
• Environmental: Waterproof (IP67)
• Operating temperature: -18° to 158° F; (-28° to 70° C)
• Size: 8.5” x 5” x 4”; 4.8 lbs. (22 x12 x10 cm; 2.2kg)
Ideal for use with backhoes and mini excavators, this receiver offers the convenience of a machine-mounted display at an economical price. The MR240 receiver provides accurate grade information for all visual machine control applications, with 240° detection of any rotating laser.
Features
• LED indicators show position of cutting edge in relation to the laser reference beam
• Memory stores the last signal received. LED arrows indicate which way to move the bucket to pick up the laser beam again
• Choice of three settings: 3 channels (indicators) in coarse mode; 3 or 5 channels in fine
• Magnetic mount allows quick mounting and easy movement from machine to machine
• Automatic shutoff
• Rugged, waterproof construction
• Includes receiver, batteries, case
One-person operation saves time and money! No grade checker is required and there’s no expensive machine downtime while operator checks grade with a rod.
