CANSEL

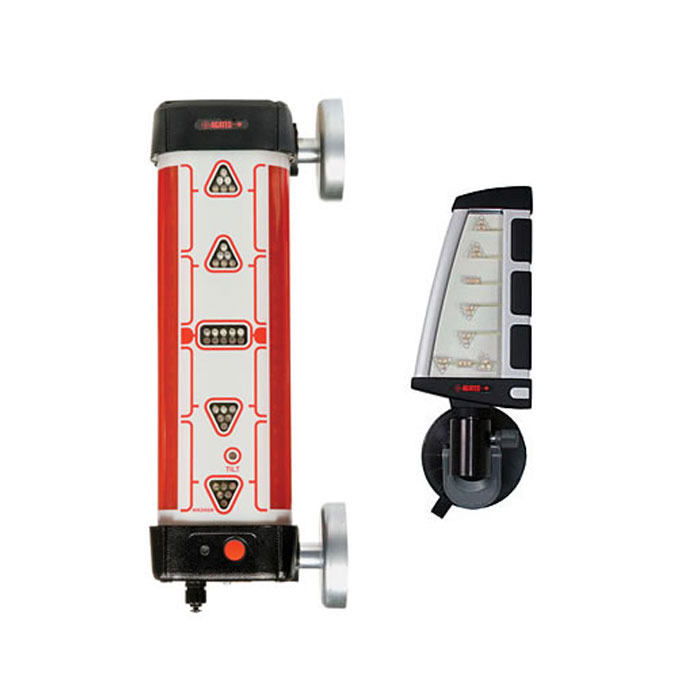

AGL MR360RA Laser Receiver
|
Specification
• Operating distance:* 650 ft. (200 m)
• Operating distance:* 650 ft. (200 m)
• Reception: 360°
• Capture window: 9.75" (25 cm)
• Accuracy*: Fine: ±1/8"-1/2" (3-12mm)
• Coarse: ±3/16"-1" (5-25mm)
• Vertical indicator: +/- 5°
• Waterproof IP67
• Charging time: 16 hours
• Battery life: 40h (depends of the using mode)
• Power: Battery rechargeable Ni-Cad
• Frequency range: 100' (30 m) between MR360R and MD360R
• Size: 14.75" x 3" x 4.25" (37.5 x 7.5 x 10.7 cm)
The MR360RA offers accurate grade information for all visual machine control applications. Large 360° detection windows pick up any rotating laser, from any angle. Built-in vertical indicator monitors angle of the stick, signaling if it's plumb or under- or overextended. Vertical position ensures consistent and accurate grade readings, saving money by reducing over- or under-cutting. Includes clamp kit.
Features
• 5 LED indicators show position of the bucket or blade in relation to laser beam
• Vertical indicator LED on receiver blinks if dipper stick is not plumb. LED arrows on remote display indicate which way to move to straighten the stick
• Memory function stores the last signal received. Arrows indicate if the beam is high or low, allowing you to quickly reach the reference plane
• Rugged, waterproof construction
• Built-in shock mounts minimize machine vibrations
• Selectable accuracy (fine and coarse)
