Saminco Inc.

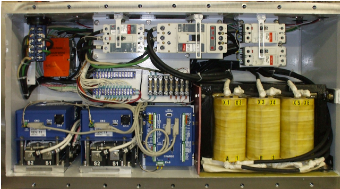

JD400 AC / DC Continuous Miner System
|
System Highlights
- Microprocessor controlled DC motor drive with advanced diagnostics and programmable features
- Can be used with the DC series wound motors rated from 240VDC to 550VDC (up to 100HP rating)
- Regenerative braking capability and solid state reversing included in compact module
Saminco System Part #: A800822
System Highlights
- Microprocessor controlled DC motor drive with advanced diagnostics and programmable features
- Can be used with the DC series wound motors rated from 240VDC to 550VDC (up to 100HP rating)
- Regenerative braking capability and solid state reversing included in compact module
Specifications
- Input Supply: 240VAC to 550VAC, 3 phase, 50/60Hz
- Output Current: 140A continuous (per module) 400A peak for 20 seconds, every 5 minutes
- Over-current Protection: 250A fast acting fuse in the controller input
- Regen Current: up to 80% of motor rating or 100A
Other voltages available. Please contact SAMINCO for details.
