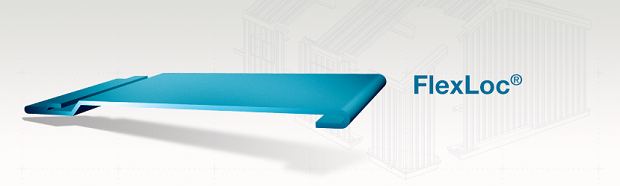

FlexLoc
|
For the designer who wants a barrel vault with a smooth look (no standing seams) and horizontal lines instead of vertical, FlexLoc® is the recommended product. It is also ideal for curved applications or soffits. FlexLoc® is a non-structural panel. Available in 8 ½-inch, 9 ½-inch or 10 ½-inch widths, the FlexLoc® panel is clipped down to a waterproofed solid substrate, eliminating panel penetrations and exposed fasteners. Because the panels are generally installed parallel to the curved surface, no pre-curving of the FlexLoc® panel is required.
For the designer who wants a barrel vault with a smooth look (no standing seams) and horizontal lines instead of vertical, FlexLoc® is the recommended product. It is also ideal for curved applications or soffits. FlexLoc® is a non-structural panel. Available in 8 ½-inch, 9 ½-inch or 10 ½-inch widths, the FlexLoc® panel is clipped down to a waterproofed solid substrate, eliminating panel penetrations and exposed fasteners. Because the panels are generally installed parallel to the curved surface, no pre-curving of the FlexLoc® panel is required.
Gauge
24 gauge (standard)
22 gauge (optional)
Length
Max= 20′-0″, contact Robertson for longer panels.
Dimensions
8½”, 9½”, 10½” wide
Finish
Galvalume Plus®
Signature® 200
Signature® 300
Limitations
Panels can be field curved (walked down) with a minimum 10′-0″ radius. Contact Robertson for radii of less than 10′-0″.
Fasteners
Panel Attachment – Concealed Fastening System
