Dyno Nobel Inc.

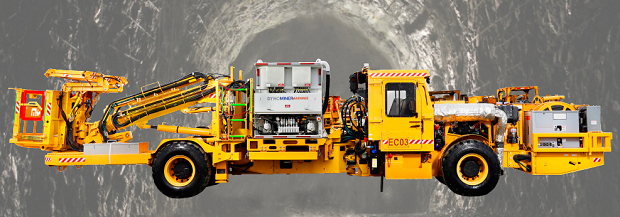

DYNOMINER® Advance
|
• Dyno Nobel’s horizontal development loading suite with the ability to load diameters 45 – 65 mm (1.75 – 2.5”)
• String loading options to allow decoupled loading in perimeter holes or density modification through chemical sensitization (gassing) varying energy across pattern
• Dyno Nobel’s horizontal development loading suite with the ability to load diameters 45 – 65 mm (1.75 – 2.5”)
• String loading options to allow decoupled loading in perimeter holes or density modification through chemical sensitization (gassing) varying energy across pattern
• Automated hose retract head fitted in basket with secondary control panel and Remtron remote
• Custom designs adaptable to wide range of OEM carriers (Getman, MacLean, Normet, etc.)
• Closed loop EC300 DynoLogix™ control system with full reporting capability or simpler open loop EC04 control system available
• Removable cassette design allows for easier carrier maintenance
• Double pump option available for blast cycle efficiency
• Electric/Hydraulic power supplied from carrier
Additional DYNOMINER ADVANCE Configurations:
DYNOMINER ADVANCE M
• Modular design allows easy decontamination for carrier maintenance
• Gassing* and string loading settings for decoupled loading in perimeter holes or varying energy across pattern
• EC300 DynoLogix control system with full reporting
• Retract head fitted in basket with secondary control panel and Remtron remote
• Kovatera MC100G carrier with elevated work platform
• Dimensions: 711 x 240 x 277 cm (280” x 94.5” x 109”)
• Loaded weight: 12,727 kg (28,000 lbs)
• Emulsion capacity: 1,272 kg (2,800 lbs)
DYNOMINER ADVANCE PV
Operated with mine air or from carrier
• Operation similar to ANFO pressure vessels with or without a carrier
• Dual Loading hoses available
• Solid sensitized only (i.e., single density)
• Emulsion capacity: up to 1,400 kg (3,080 lbs)
DYNOMINER ADVANCE APS
• Simple diaphragm pump operation
• Powered by mine air
• Basic and low cost for various underground operations
• Solid sensitized only (i.e., single density)
• Emulsion capacity: 818 kg (1,800 lbs)
DYNOMINER ADVANCE SPV
• Stand alone, air operated units designed for shaft sinking applications
• Manifold with 4 ports that can be operated simultaneously for fast loading times
• No water lubrication required
• Full coupling produces excellent breakage and wall control
• No pumps or moving parts
• Solid sensitized only (i.e., single density)
• Emulsion capacity: custom built to Galloway dimensions
