Leica DSX Utility Detection Solution

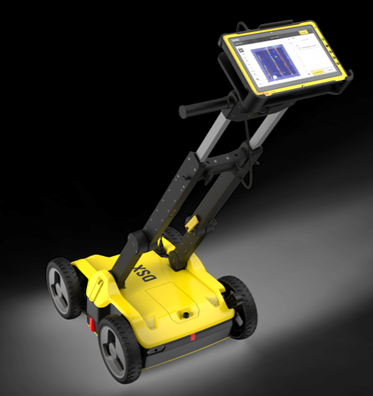

For utility repair and maintenance, civil engineering and surveying companies, the Leica DSX utility detection solution, consisting of a portable hardware with intuitive software allows to easily locate, visualise and map utilities. Unlike any other ground penetrating radar (GPR) system, the Leica DSX maximises productivity with cutting-edge software that automates data analysis and creates a 3D utility map on the field.



Ease of Use



Ensure smooth and accurate underground utility detection without expert knowledge

Complete utility detection and mapping in just a few steps through intuitive user interface

Scan anywhere and at any time, even in narrow areas and under severe conditions



Instant 2D/3D Utility Map



Save your time on site by mapping underground utilities in just minutes

Export utilities in CAD or BIM-read formats for further usage

Create professional reports, customised to your and your customers’ needs



Reliable Detection Results



Detect all types of underground utilities in high resolution to assure reliable avoidance zones

Verify detected utilities with support of smart algorithm

Import of POI’s and utility records to help you make better decisions



Integrated Solution



Offer a complete workflow from acquire to excavate

Locate underground utilities with survey-grade accuracy

Generate utility maps, compatible with all coordinate reference systems



STEP 1 : Collect information



Start by collecting utility records from utility company or local municipality. Upload them into DXplore. If possible, go the site before the job to perform a visual inspection. Use an Electromagnetic Locator (EML) (hyperlink) to search for power cables and conductive utilities and mark them on the ground.



STEP 2: Map utilities with Leica DSX



Set up the grid in the area of interest and collect information about all underground utilities with DSX and take advantage of automated and supported post-processing on site, resulting in a 3D utility map. DSX can be used together with Leica GPS/GNSS systems to generate highly accurate, georeferenced maps. Use additional information from STEP 1 in DXplore during data capture to support you in finalising the picture of the underground.



STEP 3: Excavate safely



Mark out utilities in the field based on the map or, for even more efficiency, send the utility map directly to an excavator with Leica MC1 software or other Leica software suites such as DX Manager Mapping, Infinity, Captivate. For further processing and overlay with additional geospatial data.
