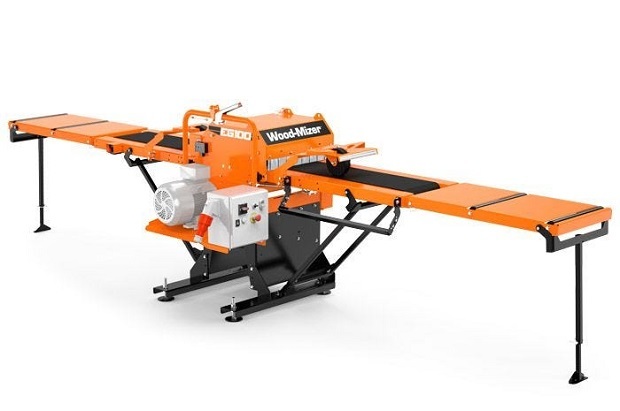

EG100 Twin Blade Board Edger

Increase production and profits by turning flitches, sideboards and slabs into clean square-edged boards with the Wood-Mizer EG100 twin blade board edger. Available in 14HP gas or 10HP electric power, the EG100 is generally operated by two people, one to feed the edger and the other to remove the finished boards.



Operation



With one adjustable and one fixed 10” (254mm) diameter carbide-tipped circular blades, the EG100 can edge up to 20 ½” (520mm) wide flitches into a 12” (300mm) wide finished board with a maximum board thickness of 2” (50mm). The manual blade adjustment lever allows quick width adjustment between board sizes. For flitches that need both sides edged, the scale on the infeed hold-down roller allows the operator to see what size boards can be cut and line up the board accordingly. A removable board fence makes it easy to trim boards that already have one straight side. Infeed and outfeed conveyors work together to move the board smoothly through the edger. The infeed and outfeed hold-down rollers are sufficiently heavy and the rubber wheels on the rollers have significant friction to keep boards stable and secured as they move through the edger.



Features



14HP Gas or 10HP Electric

20 -1/2" (520mm) max width capacity with 12" (300mm) max finished board width

2" (50mm) max board thickness

Two 10" (254mm) diameter carbide-tipped blades

30 fpm (9m/min) feed rate for gas powered model

0-46 fpm (0-14m/min) feed rate for electric powered model

Easy shipping and assembly

Optional 40" x 24" (1016mm x 610mm) infeed and outfeed extension table



The EG100 twin blade board edger ships on a single pallet and requires minimal assembly. With a 2-year warranty, the EG100 edger is backed by the same level of service, quality and safety features shared by the entire family of Wood-Mizer wood processing equipment.
