Load Control Module (LCM)

The Load Control Module (LCM) is a demand response (DR) technology that enables electric utilities to shed load by controlling power to energy-intensive appliances, such as HVAC units, pool pumps, water heaters and irrigation pumps.

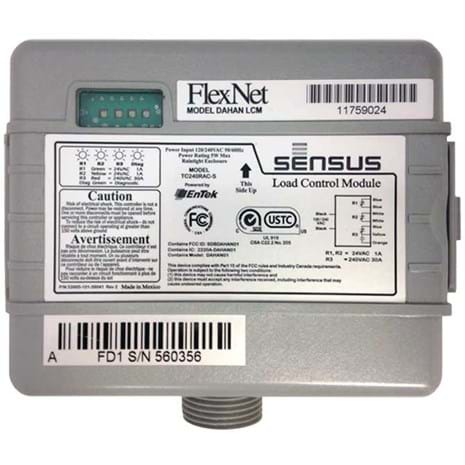

Our model TC240RAC-S module is a multifunction switch for residential and commercial applications. It includes a high-power, two-watt radio for our FlexNet® communication network. The radio allows two-way direct, tower-to-LCM communication with no need for pairing to a meter or other device. The Sensus Load Control Module provides value on top of any FlexNet system deployment and it can be used at any home or business.



The TC240RAC-S is compact and hosts up to three control relays, including one 30 Amp 240VAC form “C” relay and two 1 Amp 24VAC relays. The form “C” relay can also be wired as a form “B” configuration for even more options. The relays operate based on the device classes selected in the software.



Benefits to you



Installs easily

Communicates two-way over FlexNet network

Aids in energy conservation



PRODUCT FEATURES



One 30 Amp 240VAC form “C” relay

Two 1 Amp 24VAC relays

Demand response and load control events supported

Event randomization

Event duty cycle

Tamper alarms

Load sensing

Cold load pickup

Sensus Headend system RNI 3.1 SP2 or later

Installation supported with FieldLogic™ Connect software



Specifications



LED state indicators

Operating temperature: -20 °C to +65 °C

Enclosure: High impact polycarbonate

Dimensions: 4.43 in (11.25 cm) H x 5.07 in (12.88 cm) W x 2.50 in (6.35 cm) D

Complies with Industry Standards: FCC Part 15, UL 916, CSA C22.2 No. 205
