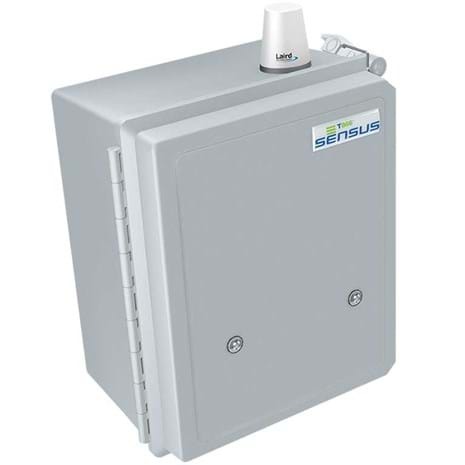

Sensus® Automation T866 MicroRTU™

The Sensus Automation T866 MicroRTU™ (T866) is a cost-effective solution for monitoring, controlling and automating remote equipment that requires discrete inputs, outputs and analogs.



Applications include:



Switches

Reclosers

Generators

Voltage regulators

Substations

Pumps

Lift stations

Environmental remediation equipment

Tower lights

The T866 includes an integrated two-way radio module to communicate with our FlexNet® communication network as well as the option to use AT&T’s 4G/LTE with 3G fallback or Verizon’s 4G/LTE cellular networks. End-to-end interoperability is achieved with our AutomationControl™ software suite. This software makes integration easy with third-party SCADA software platforms via our SCADA-Xchange™ interface.



Benefits to you



Includes manual control operation functionality

Allows automation of control logic from AutomationControl.

Installs quickly and easily

Provides immediate equipment status updates

Interfaces easily with third-party SCADA software platforms

Monitors and controls field equipment remotely

Allows remote configuration



PRODUCT FEATURES



Eight digital inputs

Six analog inputs that support 5 VDC, 1-10 VDC, 0-1 mA DC, 4-20 mA DC, 0-2 VAC RMS or 0-10 VAC RMS signal ranges

Six digital outputs for controlling equipment

Includes a control power AC Line Voltage Monitor to report undervoltage and overvoltage conditions as well as power outages

Monitoring, control and remote configuration options are accessible from the secure AutomationControl applications or through an existing SCADA system using SCADA-Xchange

Operating parameters are locally and remotely configurable

Automatic battery test for reporting low battery conditions

Logs all device history



Specifications



FlexNet communication network:

Transmit power: 2W

Frequency: 900 MHz band

Primary licensed

Phantom 3.0dBi antenna included



Cellular network:

AT&T: 4G/LTE with 3G fallback

Verizon: 4G/LTE

Transmit power:

3G: 2W (GSM), 0.25W (WCDMA)

4G: 0.2W (LTE)



Frequency:

3G: 850/1900 MHz

4G: 700/850/1700/1900 MHz

3G/4G external multi-band antenna (transmitter and receiver)

Ultra wide band internal diversity antenna (receiver only)
