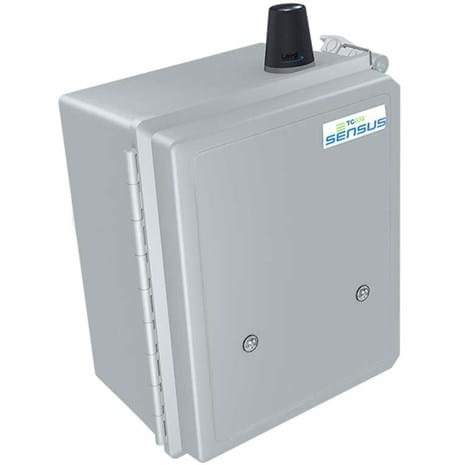

Sensus® Automation TC032 MicroRTU™

The Sensus® Automation TC032 MicroRTU™ (TC032) is a cost-effective solution for operating switched capacitor banks. The TC032 offers connectivity options. It can communicate through our FlexNet® communication network via a two-way radio module, or it can communicate anywhere AT&T’s 4G/LTE with 3G fallback or Verizon’s 4G/LTE cellular networks are available.



The TC032 easily integrates into your daily operations both in the field and in your  office. You can monitor and control units from central Volt-Var applications or from utility SCADA systems through our SCADA-Xchange™ interface. Engineers, planners and field technicians can simultaneously check status and configure the TC032 using a FlexNet network through our AutomationControl™ software suite.



Benefits to you



Monitors and controls fixed or switched capacitor banks

Interfaces with third-party SCADA platforms

Checks status and configures capacitor banks

Provides Volt-Var optimization



PRODUCT FEATURES



Automatic control strategies

Voltage control

Temperature control (with an optional ambient temperature sensor)

Temperature control with voltage override (with an optional ambient temperature sensor)

Neutral current detection with corrective action and retry

SCADA override with local control fallback and report only

Capacitor bank control through two 30-amp relays

Remote access and control switches

Undervoltage and overvoltage alerts



Specifications



FlexNet communication network:

Transmit power: 2W

Frequency: 900 MHz band

Primary licensed

Phantom 3.0dBi antenna included



Cellular network:

AT&T: 4G/LTE with 3G fallback

Verizon: 4G/LTE

Transmit power:

3G: 2W (GSM), 0.25W (WCDMA)

4G: 0.2W (LTE)



Frequency:

3G: 850/1900 MHz

4G: 700/850/1700/1900 MHz

3G/4G external multi-band antenna (transmitter and receiver)

Ultra Wide Band internal diversity antenna (receiver only)
