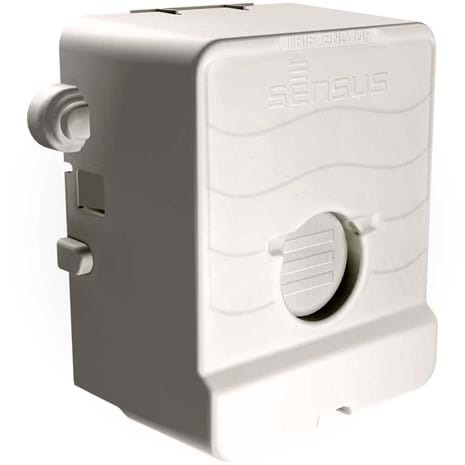

SmartPoint® 510M Non-Pit Set Module
|
Our SmartPoint® 510M non-pit set module is a radio transceiver that gives you RF inbound and outbound access to water measurements and ancillary device diagnostics. It’s designed for non-submersible/non-pit (surface-mount) installations. With two-way communication ability, it serves as a walk-by or drive-by end point, a fixed-base end point or any combination of those. This versatility gives you highly flexible data collection options and simplifies both current operations and network evolution.
Our SmartPoint® 510M non-pit set module is a radio transceiver that gives you RF inbound and outbound access to water measurements and ancillary device diagnostics. It’s designed for non-submersible/non-pit (surface-mount) installations. With two-way communication ability, it serves as a walk-by or drive-by end point, a fixed-base end point or any combination of those. This versatility gives you highly flexible data collection options and simplifies both current operations and network evolution.
The 510M collects data from the meter register and transmits it to the collection device. In walk-by/drive-by mode, the transceiver collects data and waits for an activation signal from the Vehicle Gateway base station (VGB) or hand-held device (HHD). When it receives a signal, it transmits the readings, the meter identification number and any alarms. As a fixed-base end point, the 510M interacts with strategically placed base stations in the service area. Migrate from walk-by/drive-by to fixed base by simply adding a base station.
Benefits to you
Delivers a fast, efficient, reliable connection at minimal cost
Minimizes new infrastructure investment
Enables effective leak detection
Offers highly flexible data collection options, including walk-by/drive-by and fixed base
Simplifies installation, updates, operations and network evolution
PRODUCT FEATURES
Wall-mounted installation
Industry-leading two watts broadcast power
Patented TouchCoupler interfaces with encoded meters via existing two-wire installations
Connect multiple registers and ancillary devices (such as acoustic monitoring) to a single SmartPoint
Hourly readings monitor continuous flow, alert to leak conditions
Extracts usage profiles to inform customers and resolve disputes
Easy updates to transceiver
Easy migration to fixed base by simply installing a base station
Specifications
Wall-mounted installation for non-pit set, non-submersible environments; meter interfaces to the FlexNet® communication network
Dimensions: 5 9/16” W x 5 1/2” H x 3” D
Weight: 1.13 lbs.
Operating temperature: -22° F to +185° F (-30° C to +85° C)
Dual- or single-port options
Compatible with a range of Sensus and non-Sensus encoded metering systems (via TouchCoupler, wired or Nicor)
2 watts broadcast power
Frequency range: 900-950 MHz
8000 channels, in 6.25 kHz steps
Proprietary narrow band modulation
Non-volatile memory
Lithium thionyl chloride batteries with hybrid layer capacitor
20-year warranty
FCC CFR 47: Part 24D, Part 101C, Part 15 licensed operation
Industry Canada (IC) RSS-134, RSS-119
