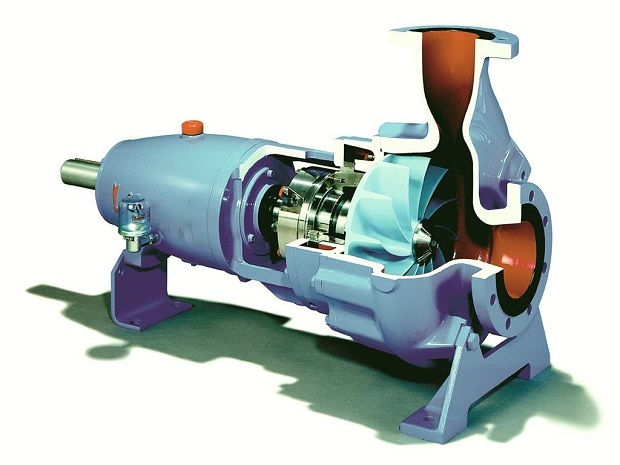

HNH-E (DEH) Series

FULLY RECESSED IMPELLER PUMPS



High Hydraulic efficiency

Low wear characteristics

Large solids handling ability

Low shear of solids

Only 15% of pumped liquid is in contact with impeller

Self venting casing design

Versatility of design

Simplicity of design

Low Life Cycle Costs (LCC)

Long MTBF (Mean Time Between Failures)



MAJOR DEH ADVANTAGES



Non clogging

The recessed impeller permits an unobstructed passage through the pump casing and this allows solids up to the full diameter of the discharge to pass through without the danger of clogging. Long fiberous materials can also be handled without difficulty.



Efficiency is in the casing

The DEH pump design incorporates an axial spiral in the concentric casing which ensures that flowing solids are discharged quickly as a result reducing internal recirculation, which is detrimental to the hydraulic efficiencies and pump wear life.



Low shear = low wear

Due to the natural flow of the fluid through the pump casing and the fact that the flow is virtually isolated from the impeller (only 15% of pumped liquid is in contact with the impeller), fragile solids such as: crystals, carbons and even live shellfish can be passed through the pump with very little damage. This pump is ideally suited for low shear applications.



Simple design

The hydraulic centering of the impeller in the casing and its simple open design results in very little radial loadings on the shaft and bearings. Even under extreme conditions when wear occurs on the impeller, it is concentric and does not affect the mechanical balance of the pump.



Low running costs

Due to the improved hydraulic efficiencies of Toyo’s recessed impeller pumps, they absorb less power than their competitors and the gentle pumping action contributes to the improved wear life of component parts. Time has proven that these pumps require few spare parts when compared to other makes of pumps.
