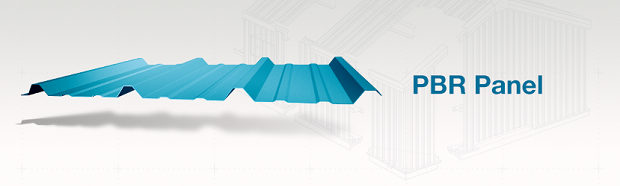

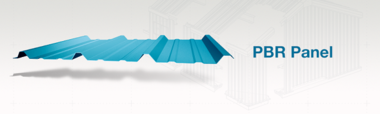

PBR Panel
|
The PBR panel’s deep ribs create an even-shadowed appearance. The area between the major ribs is reinforced with minor ribs. PBR is one of the most economical panel systems and can be used for both roof and wall applications.
The PBR panel’s deep ribs create an even-shadowed appearance. The area between the major ribs is reinforced with minor ribs. PBR is one of the most economical panel systems and can be used for both roof and wall applications.
Gauge
26 gauge (standard)
24 gauge
22 gauge
Length
45′ maximum length is standard but longer lengths are available by special request
Dimensions
36″ by 1 1/4″
Finish
Galvalume Plus®
Signature® 200
Signature® 300
Limitations
Not designed for coverage over bar joist or to be used as rigid secondary; Five foot on center purlin spacing
Fasteners
Standard coated, zinc- aluminum cast head, or stainless steel head screw
Usage
Roof, wall, liner, mansard, and soffit panel applications
Advantages
The panel can serve as an alternate wall panel by putting the paint finish on the under side
An additional leg is rolled on one side of lap rib to facilitate installation
Flexible installation
Cost effective
Ease of installation
The panel qualifies for UL® 90 in multiple construction numbers
The panel configuration enhances diaphragm capabilities for purlin stability
Profile light transmitting panels are available for the PBR panel
Used with long-life fasteners this panel has a 25-year warranty
