Robertson Building Systems

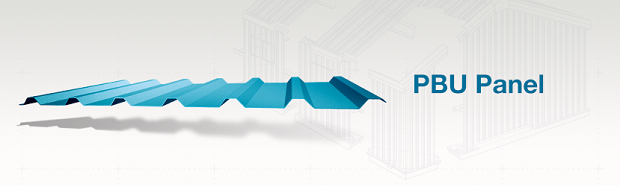

PBU Panel
|
The PBU panel is an exposed fastener system that can be used for both roof and wall applications. PBU can be installed directly over purlins or joists. PBU offers the versatility of being used in both vertical and horizontal applications to give designers a contemporary appearance for their building project. PBU is recommended for 1:12 or greater roof slopes.
The PBU panel is an exposed fastener system that can be used for both roof and wall applications. PBU can be installed directly over purlins or joists. PBU offers the versatility of being used in both vertical and horizontal applications to give designers a contemporary appearance for their building project. PBU is recommended for 1:12 or greater roof slopes.
Gauge
26 gauge (standard)
29,24,22 gauge (optional)
Length
Maximum 50′ (standard), other lengths are available as special requests
Dimensions
16″ wide and 2″ high (standard)
12″ also available
Finish
Galvalume Plus®
Signature® 200
Signature® 300
Limitations
Recommended for roof slopes of 1:12 or greater.
