AVP
|

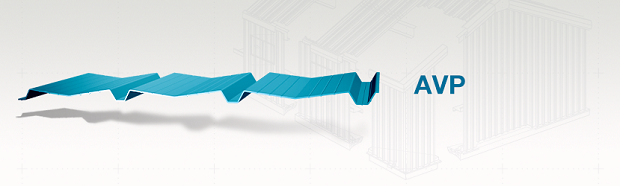

The AVP panel produces a decorative shadow line creating a distinctive architectural effect with semi-concealed fasteners. Ribs are 1 1/8″ deep and major corrugations spaced 12″ on center. The net coverage of panel is 3′-0 “.
The AVP panel produces a decorative shadow line creating a distinctive architectural effect with semi-concealed fasteners. Ribs are 1 1/8″ deep and major corrugations spaced 12″ on center. The net coverage of panel is 3′-0 “.
Gauge
26 gauge
24 gauge
Length
Maximum recommended 40′. Longer lengths available on special order.
Dimensions
36″ wide by 1 1/8″ deep
Finish
Galvalume Plus®
Signature® 200 Colors
Signature® 300 Colors
Fasteners
Various, depending on application.
Limitations
Installation may be difficult with very thick insulation.
Usage
Wall panel, liner panel, soffit panel, mansard panel face and back sheet.
Advantages
Attractive architectural application
Eliminating end laps improves appearance and enhances ease of installation
Reduces the potential for oil canning
Reduces glare and the potential for oil canning
Premium paint finishes with 25 year warranty
AVP carries a UL® “Class A” fire rating
