Metal Marquis inc.

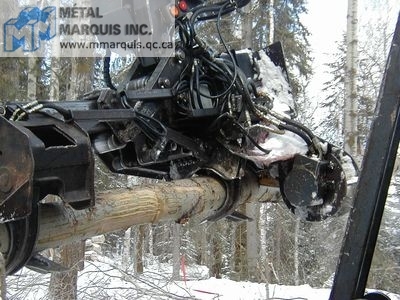

Delimber-Slasher Marquis DS1000
|
-
• Delimber-Slasher DS1000 conceived to fashion small stems of branches.
• On top of this, she is recognized for the quality of its piling up than she obtains.
Specifications
| DELIMBER ARM | maximum opening of 25 in / 632mm |
|---|---|
| WEIGHT | Approximate of 3500 lbs / 1590 kg |
| MECHANICAL MEASURING SYSTEM | Stopper |
| LINKING SYSTEM | Hydraulic jack with linking system |
| STROKE | 60 in / 1700 mm |
| SPEED OF ARROW | 6 to 10 ft/s or 1800 to 3000 mm/s |
| DELIMBERING STRENGHT | 6500 lbs / 30 kN |
Specification sheet
Note: The characteristics and technical data contained in this sheet can be the object of modifications without previous notice.
Recommended Harvester
| WEIGHT REQUIRED | 13000 to 25000 lbs / 6000 to 11000 kg |
|---|---|
| POWER REQUIRED | 50 to 70 hp / 30 to 50 kw |
| DEBIT REQUIRED FOR ARROW | 30 to 40 gpm / 100 to 200 lm |
| DEBIT REQUIRED - OTHER FONCTIONS | 17 gmp / 65 lm |
| REQUIRED OPERATING PRESSURE | 3500 psi / 230 bar |
Specification of Harvester
Note: The characteristics and technical data contained in this sheet can be the object of modifications without previous notice.
• Multi-stems fashioning.
• Very simple machine, quicker and more effective.
•Increase of productivity for the forest carrier by the quality of its piling up.
• Precision in the cutting length.
