ROCK-TECH
MUKI FF
|

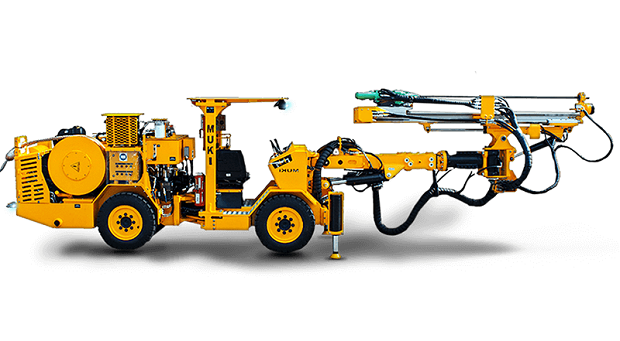

Front face drilling rig, electro-hydraulic, of 1.05 m width for tunneling in underground mining for small sections from 1.5 x 2.0 up to 3.5 x 3.5 m. Upper Drill option, for Cut *apert* Fill method on sections from 1.5 m width at the bottom.
Front face drilling rig, electro-hydraulic, of 1.05 m width for tunneling in underground mining for small sections from 1.5 x 2.0 up to 3.5 x 3.5 m. Upper Drill option, for Cut *apert* Fill method on sections from 1.5 m width at the bottom.
It comes with hydraulic boom of square section and feed beam forward with options for working with drill rods 8 to 10 feet lengths, options telescopic 6/10 and 8/10 feedt lengths. Equipped with Montabert drifter HC 50 (14 kW).
Chassis for heavy duty application, articulated 4WD, self-propelled diesel Deutz engine and Poclain hydrostatic transmission, electrohydraulic system for drilling.
