Garage Supply Contracting Inc.

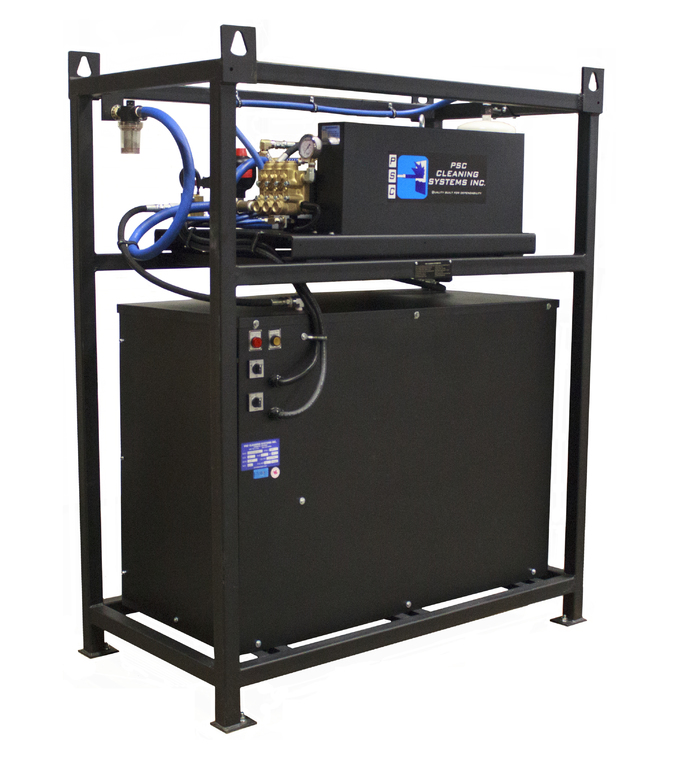

ES630K2496A 440
|
ES630K2496A 440
- Electrically Heated Hot Water Pressure Washing Systems
- Advantages
- FUNCTIONAL DESIGN: Ease of use - trigger gun controlled start/stop system with solid state time delay shutdown
- Instant hot water - heat exchanger is thermally insulated allowing for almost 100% energy input/output and continuous, efficient operation
- Large 70 gallon (single coil models) & 130 gallon (dual coil models) heater storage tanks - allows for continuous heat recovery even when trigger gun(s) not in use
- No open flame - can be installed in virtually any location
- Inherent pump protection - automatic high temperature shut down (thermo-probe) on pump bypass
- Compact - 24" x 32" footprint with 52" height (single coil models)
- Standard Equipment
- Belt-driven General ceramic plunger pump with adjustable pressure regulator, pilot-activated flow switch, liquid-filled pressure gauge and thermal protection (automatic shutdown)
- Automatic heat exchanger with #316 stainless steel HX coil(s), pin-type Calrod heating elements with Incoloy sleeves, adjustable temperature controller, low level switch with indicator light and NEMA 4X-rated control switches
- Powder coat painted heavy-gauge carbon steel base and frame assemblies
- Powder coat painted heater wraps and pump covers
- Dual or single lance/gun(s) with 50 ft. high-pressure wash hose(s) and high-pressure (upstream) or low-pressure (downstream) chemical injection
