dPlucker
|

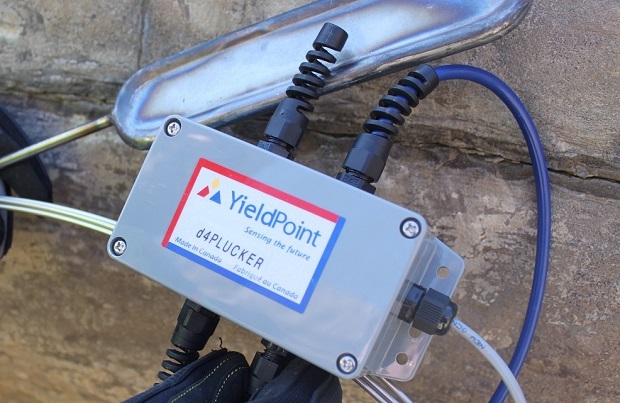

The d1Plucker and d4Plucker are small, low cost unit that instantly convert vibrating wire (VW) transducers such as load cells, stressmeters and piezometers, into d-Tech compatible instruments.
The d1Plucker and d4Plucker are small, low cost unit that instantly convert vibrating wire (VW) transducers such as load cells, stressmeters and piezometers, into d-Tech compatible instruments.
These VW sensors then become compatible with YieldPoint’s data loggers and radios.
1 channel and 4 channel versions are available. d-Plucker enables YieldPoint’s low cost digital peripheral devices to read (d-Reader), store (d-Logger) or transmit (d-Mesh) data from VW sensors.
The user simply connects the leads of the VW sensor to a terminal block housed inside the unit and then treats the sensor like any other YieldPoint d-Tech instrument. The unit outputs the temperature recorded by the thermistor in oC (0.1oC resolution) and the period of vibration of the wire in µS (0.1µS resolution).
Features:
Plug-and-play solution for VW sensors
Inexpensive and versatile
Allows VW sensors to interface with YieldPoint d-Reader, d-Logger data-loggers and d-Mesh networks
500-6000Hz (0-5Vdc) square wave sweep. Output is in microseconds (µS) or in digits.
Temperature output from thermistor with 0.1C resolution.
Digital RS485 Output (9600,8,N,1), with Unique Instrument ID, SensorType, and output data.
Specifications:
Range (F.S.): 166-2000µs period measurement, Temp: -40 to 125oC
Core Technology: 20MHz microcontroller providing 0-5V 500-6000Hz sweep
Output Signal: RS485 (9600,8,N,1) ASCII encoded signal comprising: Unique Instrument _ID, Sensor_Type, Temp (oC) and Period (µS) data
VW Resolution: 0.1µs with hand held readout.
Displ. Accuracy: – better than +/- 1µs
Temp. Range: –40 – 125oC
Temp. Accuracy: +/- 1oC –Digitally trimmed at 0oC and 25oC
Temp Resolution: 0.1oC
