Atlas Dewatering Corporation

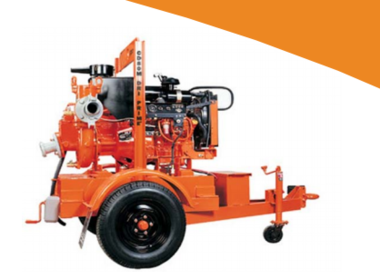

GODWIN CD80M
|
The Godwin Dri-Prime CD80M pump offers flow rates to 460 USGPM and has the capability of handling solids up to 1.6" in diameter.
The Godwin Dri-Prime CD80M pump offers flow rates to 460 USGPM and has the capability of handling solids up to 1.6" in diameter.
The CD80M is able to automatically prime to 28' of suction lift from dry. Automatic or manual starting/stopping available through integral mounted control panel or optional wirelessremote access.
Indefinite dry-running is no problem due to the unique Godwin liquid bath mechanical seal design. Solids handling, dry-running, and portability make the CD80M the perfect choice for dewatering and bypass applications.
Features and Benefits
Also available in a critically silenced unit which reduces noise levels to less than 70 dBA at 30'.
Simple maintenance normally limited to checking fluid levels and filters.
Dri-Prime (continuously operated Venturi air ejector priming device) requiring no periodic adjustment. Optional compressor clutch available.
Extensive application flexibility handling sewage, slurries, and liquids with solids up to 1.6" in diameter.
Dry-running high pressure liquid bath mechanical seal with high abrasion resistant solid silicon carbide faces.
Close-coupled centrifugal pump with DriPrime system coupled to a diesel engine or electric motor.
All cast iron construction with cast steel impeller for increased impact resistance when pumping solids.
Standard engine Yanmar 3TNV76 (IT4 Flex).
Also available with Caterpillar C1.1T (IT4 Flex).
