GODWIN HL225M

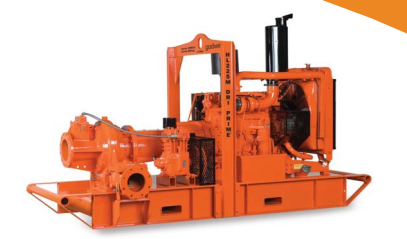

The Godwin Dri-Prime HL225M pump offers flow rates to 3660 USGPM and has the capability of discharge pressures to 164 psi.

GODWIN HL225M
The Godwin Dri-Prime HL225M pump offers flow rates to 3660 USGPM and has the capability of discharge pressures to 164 psi.
The HL225M is able to automatically prime to 28' of suction lift from dry. Automatic or manual starting/stopping available through integral mounted control panel or optional wirelessremote access.
High discharge pressure, dry-running, and portability make the HL225M the perfect choice for mining, industrial and emergency fire backup applications.

Features and Benefits

Simple maintenance normally limited to checking fluid levels and filters.
Dri-Prime (continuously operated Venturi air ejector priming device) requiring no periodic adjustment or control. Optional automatic onoff control available on the priming system.
Dry-running high pressure liquid bath mechanical seal with high abrasion resistant solid silicon carbide faces.
Close-coupled centrifugal pump with DriPrime system coupled to a diesel engine or electric motor.
All cast iron construction (stainless steel construction option available) with cast steel impeller.
Also available in a critically silenced unit which reduces noise levels to less than 70dBA at 30'.
Standard engine Caterpillar C9 (T3 Flex). Also available with John Deere 6090HFC94 (IT4).
