MacLean Engineering

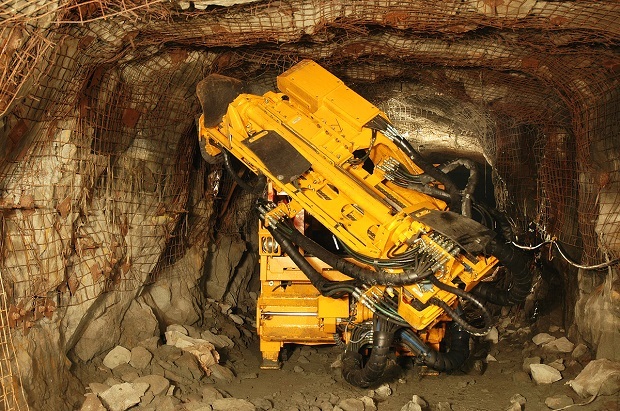

SSB-Small Section Bolter
|
Based upon the highly successful MacLean Series 900 Scissor Bolter, the SSB Small Section Bolter is the ground support solution for smaller mine openings. The benefits of safety, productivity, versatility and quality of installation again combine to provide the ideal tool for the mine development cycle and rehabilitation operations.
The MacLean Advantage:
Based upon the highly successful MacLean Series 900 Scissor Bolter, the SSB Small Section Bolter is the ground support solution for smaller mine openings. The benefits of safety, productivity, versatility and quality of installation again combine to provide the ideal tool for the mine development cycle and rehabilitation operations.
BENEFITS:
Offers significant productivity savings (one man operation for bolting and meshing)
Permits drilling and bolt insertion from a safe working environment
Eliminates safety hazards of hand held drilling
Multiple types of ground support hardware can be installed without loss of productivity
Sequential bolting ring set-ups can be made from the drilling and bolting platform
Storage space for all material to complete a shift’s work
FEATURES:
Self-propelled, heavy duty four wheel drive articulated mine carrier
Hydraulic positioning, rock drilling/bolting systems
Electric-hydraulic control system
On-board storage for bolting supplies
Provides scaling deck at optimum height
Hydraulic rock drilling
Remote Drive System
Drilling and bolting functions controlled from a remote location
Telescopic feed to fit single pass drilling in low clearance areas
APPLICATIONS:
Development drifts and tunnels – 3.35m (11 ft) to 4.50m (14.5 ft) high; minimum width 3.05m (10 ft)
Installation of mechanical rock bolts, resin rebar, Split Set®, Swellex®, Dywidag®, and cable bolts
Installation of screen or wire mesh
Long hole drilling for test holes or cable bolting
Rock bolt installation from invert to invert
Parallel vertical drilling across 42” (1.04m) width
