MacLean Engineering

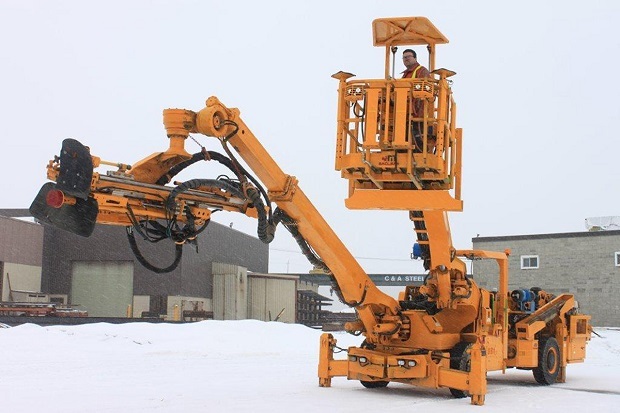

UBM-Utility Bolter
|
Designed to supplement our suite of ground support solutions, the UBM Utility Bolter delivers height and reach options on a wide range of ground support and mine services functions. Like the MacLean 900 Series and SSB Small Section bolters, the UBM is purpose built with safety and quality of installation in mind.
The MacLean Advantage:
Designed to supplement our suite of ground support solutions, the UBM Utility Bolter delivers height and reach options on a wide range of ground support and mine services functions. Like the MacLean 900 Series and SSB Small Section bolters, the UBM is purpose built with safety and quality of installation in mind.
BENEFITS:
All bolting occurs under supported ground
Permits drilling and bolt insertion from a safe working environment
Man-basket platform enables correct scaling/barring practices to be carried out and facilitates mesh/screen placement
Offers significant productivity savings (one-man operation for bolting and meshing)
Accelerates the development cycle
Eliminates safety hazards of hand-held drilling
Multiples types of ground support hardware can be installed without loss of productivity
Sequential bolting ring set-ups can be made from the drilling and bolting platform
Long hole drilling capability
Provides scaling deck at optimum height
Provides full coverage in varied heading conditions
FEATURES:
Highly mobile, self-propelled, heavy duty four-wheel drive articulated carrier
Hydraulic positioning, rock drilling/bolting systems common with existing Series 900 Scissor Bolters
Electric/hydraulic portable control system
Operating protocol prevents exposure to loose rock hazards
Storage for bolting supplies on boom basket and on the carrier
Remote control drilling and bolting functions
Drill pendant drilling and bolting functions
Rope ladder emergency descent from basket
Optionsl CSA rated ROPS & FOPS canopy or enclosed cabin for driver’s position
Ansul fire suppression and Checkfire fire detection
Safety handrail system with kick plate and mid-height rail
Safety lock bar for raised maintenance work
Anti-slip dimple plate on all step surfaces and three-point contact on all climbing areas
Remote engine start/stop from basket
Control system on basket and driver’s compartment
Automatic back-up alarm
